Galaxy 7G Hybrid AC/DC Solar Air Conditioner 1.5 Ton
Galaxy 7G Hybrid AC/DC Solar Air Conditioner 1.5 Ton
Cellcronic 7th generation hybrid AC/DC solar air conditioner is based on full DC inverter air conditioner VRF technology. The main components of our unit is DC inverter compressor, DC fan Motor, Solar MPPT Booster and inverter air conditioner controller.The hybrid ACDC unit power supply from outdoor units, it has MC4 Connector P+/ P- for DC solar panel directly power supply, it has (L/N/E for AC Grid power supply. and indoor unit connect with outdoor unit by connection cable.
1.5 Ton Galaxy 7G Hybrid AC/DC Solar Air Conditioner
POWER SUPPLY
AC Power (Ph-V-HZ) 1Ph 208V-240V/50-60HZ
DC Power (PV in Series) V 80-380V
DC Power Current (A) </=12A
ADVANCED SOLAR PANEL (Pcs) (3-4)*330W in series
Rated Cooling
Capacity(W) 5070(1200-6000)
Capacity(BTU) 17300(4100-20400)
Power input(W) 1400(220-2100)
Rated Heating
Capacity(W) 6100(1200-6800)
Power input(W) 1770(220-2500)
T1 EER (W/W)/ (BTU/W) 3.60/12.35
COP (W/W)/ (BTU/W) 3.45/11.75
Dehumidification capacity (L/h) 1.7
Compressor
Model WHP05600
Type 2xRotary Inverter
Brand Highly

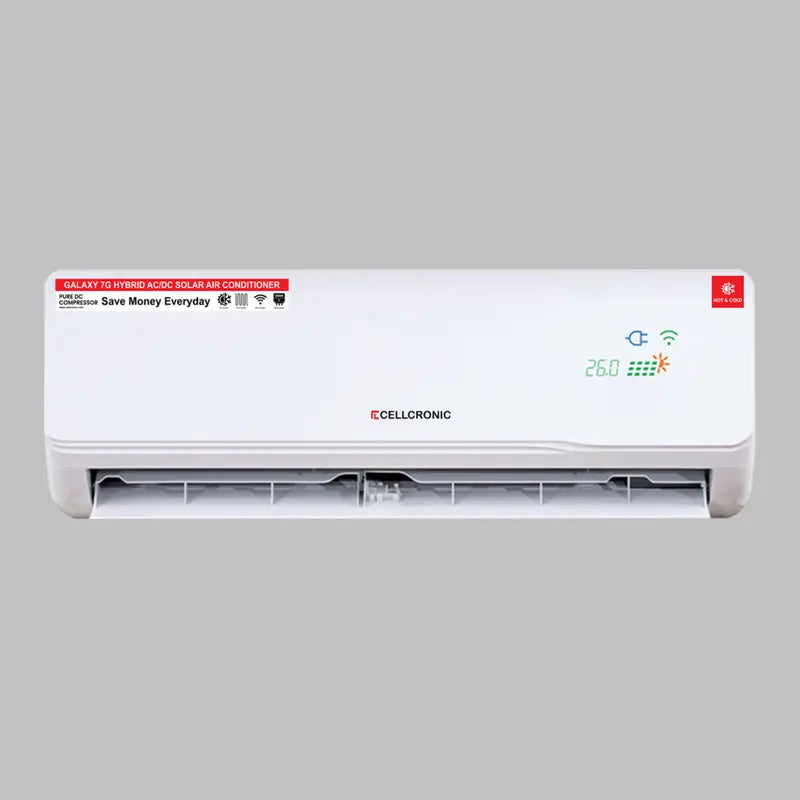

Indoor
Indoor Fan Motor Model BLDC-45W
Noise level (Turbo db-A) 46
Dimension in (W×H×D) 1080mm×330mm×237mm
Packing (W×H×D) 1140mm×300mm×382mm
Net weight/Gross weight 15.0/18.5kg

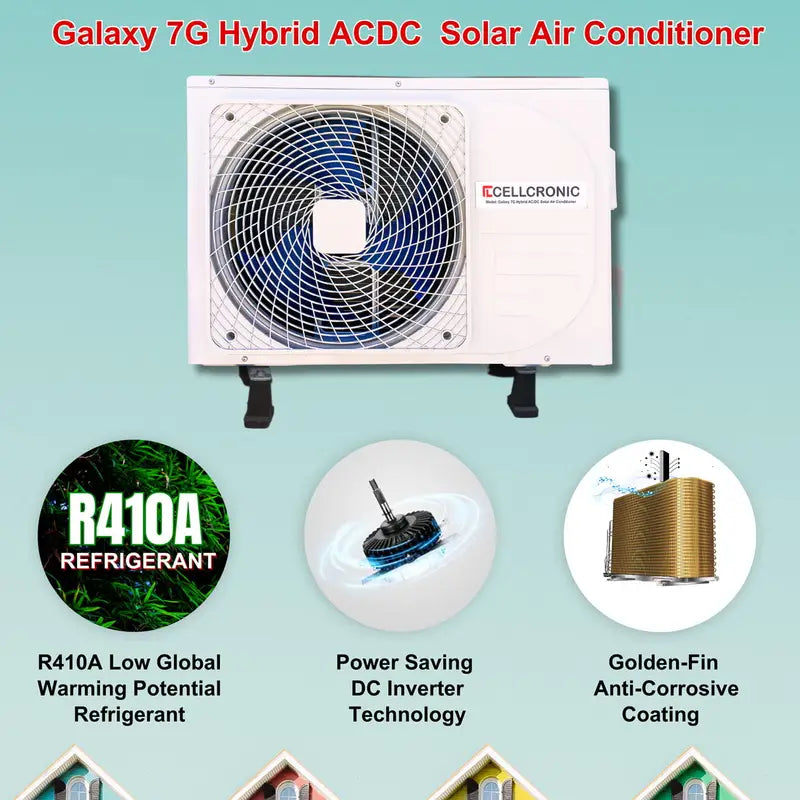

Outdoor
Outdoor Fan Motor Model BLDC-55W
Noise level (Turbo db-A) ?55

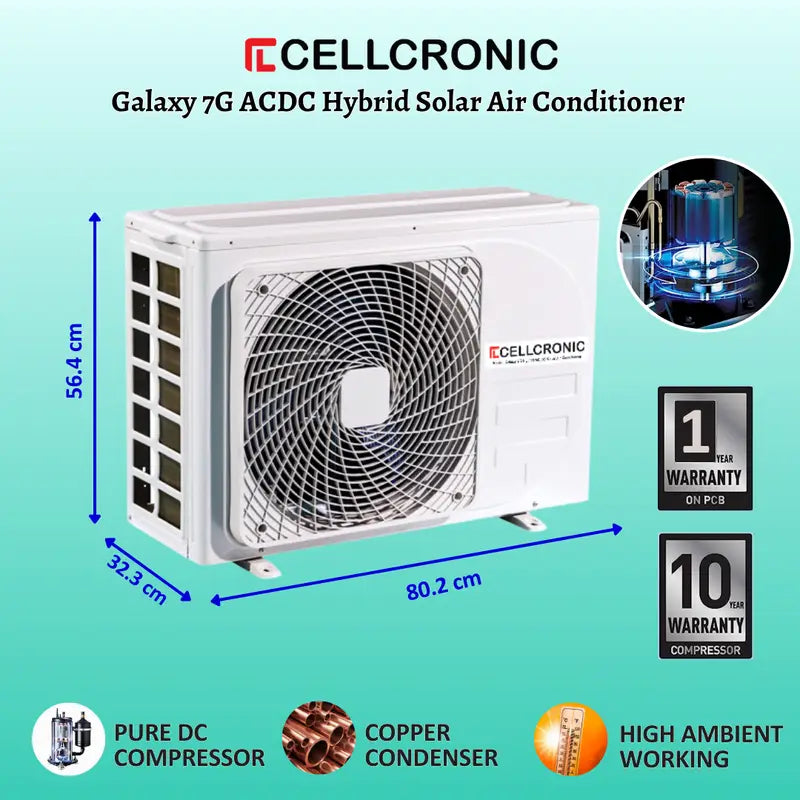

Dimension in (W×H×D) 802mm×564mm×323mm
Packing (W×H×D) 910mm×622mm×405mm
Net weight/Gross weight 37/42.0kg
Refrigerant
Refrigerant Type R410A
Max Design pressure (MPa) 4.3/1.5
Copper pipe Gas side/Liquid side (inch) 1/2 1/4
Copper Pipe length (m) 20
Copper Pipe Max. difference in level(m) 10
General Data
Refrigerant connection copper pipe length(m) 4
Connection wire length(m) 5
Electronic Expansion Valve Yes
Loading QTY 40″ Hq/ 20″GP(sets) 160/75
Complete Unit Warranty 1 Years
Compressor Warranty 10 Years
