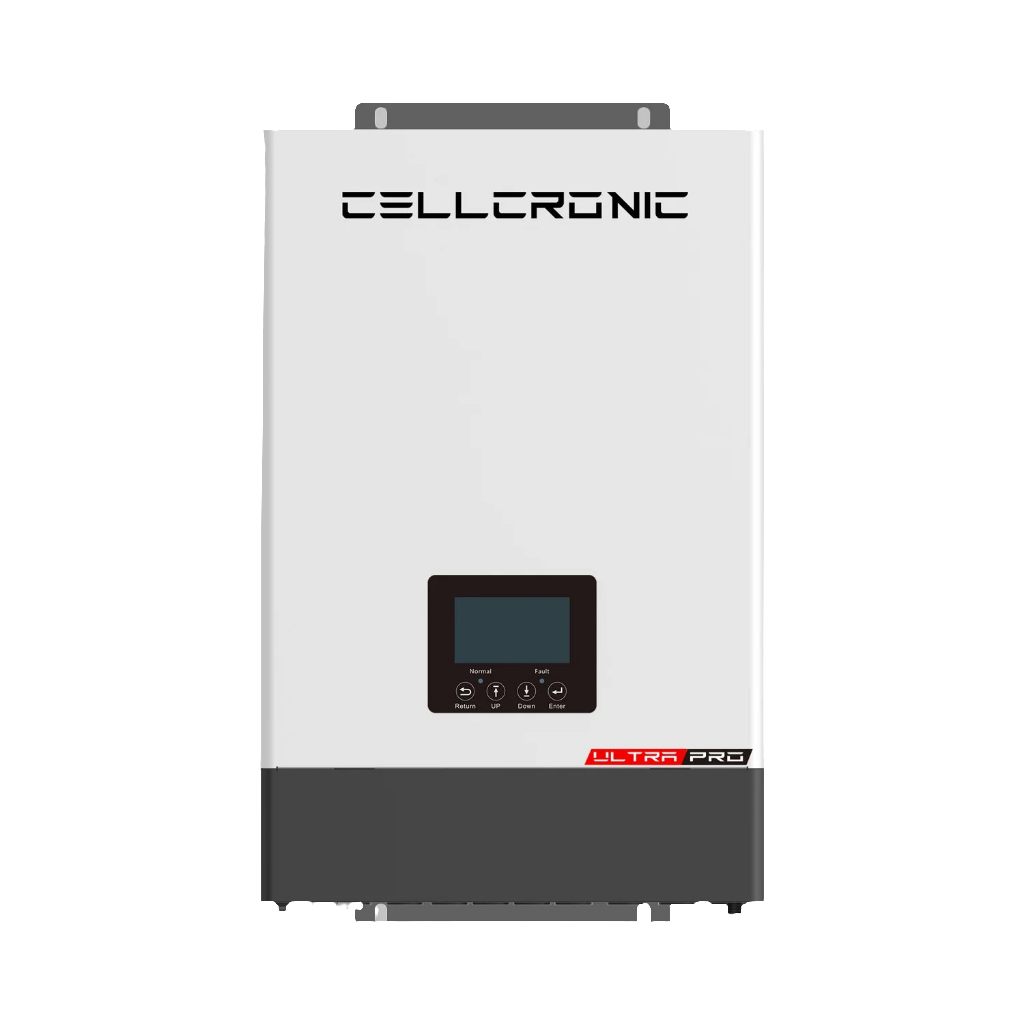

CELLCRONIC ULTRA PRO 5KW-48V DUAL MPPT (Single Phase) Hybrid Inverter
Regular price
Rs. 89,285.00
Sale price
Rs. 89,285.00
Regular price
Unit price
CELLCRONIC ULTRA PRO 5KW-48V DUAL MPPT (Single Phase) Hybrid Inverter
Regular price
Rs. 89,285.00
Sale price
Rs. 89,285.00
Regular price
Unit price
Product description
Key Specifications & Features
- AC couple to retrofit existing solar system
- Works as On- grid and Off- Grid mode
- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 100V-480VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 14.5kg
- Inverter Dimension 303Wx504x135D
- 20 years design life.
| ULTRA PRO 5kw Dual MPPT Hybrid Inverter | ||
| Battery Input Data | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 51.2V/48V | |
| Max. Charge Voltage | 59V | |
| Charging Strategy for Li–lon Battery | Self-adaption to BMS | |
| INPUT PV | ||
| Max. DC Input Power(W) | 9000W | |
| PV input Voltage (V) | 100-480Vdc | |
| MPPT Voltage Range (V) | 120-385Vdc | |
| Max. Solar Charge Current | 140A | |
| Start-up Voltage (V) | 100Vdc | |
| PV input Current (A) | 18A+18A | |
| No. of MPPT Trackers | 2 | |
| No. of Strings Per MPPT Tracker | 1+1 | |
| AC OUTPUT DATA | ||
| Rated AC Output and UPS Power(W) | 6000W | |
| Max. AC Output Power(W) | 6000W | |
| Surge Power | 12000VA | |
| Switch Time | 10ms | |
| Output Frequency and Voltage | 50/60Hz;220/230/240Vac (Single Phase) | |
| Grid Type | Single Phase | |
| EFFICIENCY | ||
| Max. Efficiency(BAT to AC) | 94.50% | |
| MPPT Efficiency(PV to AC) | 99.00% | |
| PROTECTION | ||
| DC Switch | Integrated | |
| Anti-islanding Protection | Integrated | |
| AC Over Current Protection | Integrated | |
| AC Over Voltage Protection | Integrated | |
| DC Reverse Protection | Integrated | |
| Insulation Detection | Integrated | |
| Leakage Current Protection | Integrated | |
| AFCI | Integrated | |
| Surge Protection | DC Type ll / AC Type ll | |
| CERTIFICATION AND STANDARDS | ||
| Grid Regulation | UL1741SB, IEEE1547: 2018, HECO SRD 2.0 | |
| Safety Regulation | IEC62109-1, IEC62109-2 | |
| EMC | EN61000-6-1, EN61000-6-3 | |
| GENERAL DATA | ||
| Operating Temperature Range(°C) | 0℃~50℃ | |
| Storage Temperature | -15℃~60℃ | |
| Wave form | Pure Sine Wave | |
| Communication with BMS | CAN/RS485/ Dry Connector | |
| Weight (kg) | 14.5kg | |
| Size (mm) | W303mm*H505mm*D135mm | |
| Protection Degree | IP20 | |
| Installation Style | Well-mounted | |
| Warranty | 2 Years | |
| Display | LED+LCD | |
| Wifi/GPRS | Yes | |
| Relative Humidity | 5~95% Relative Humidity (Non-Condensing) | |
