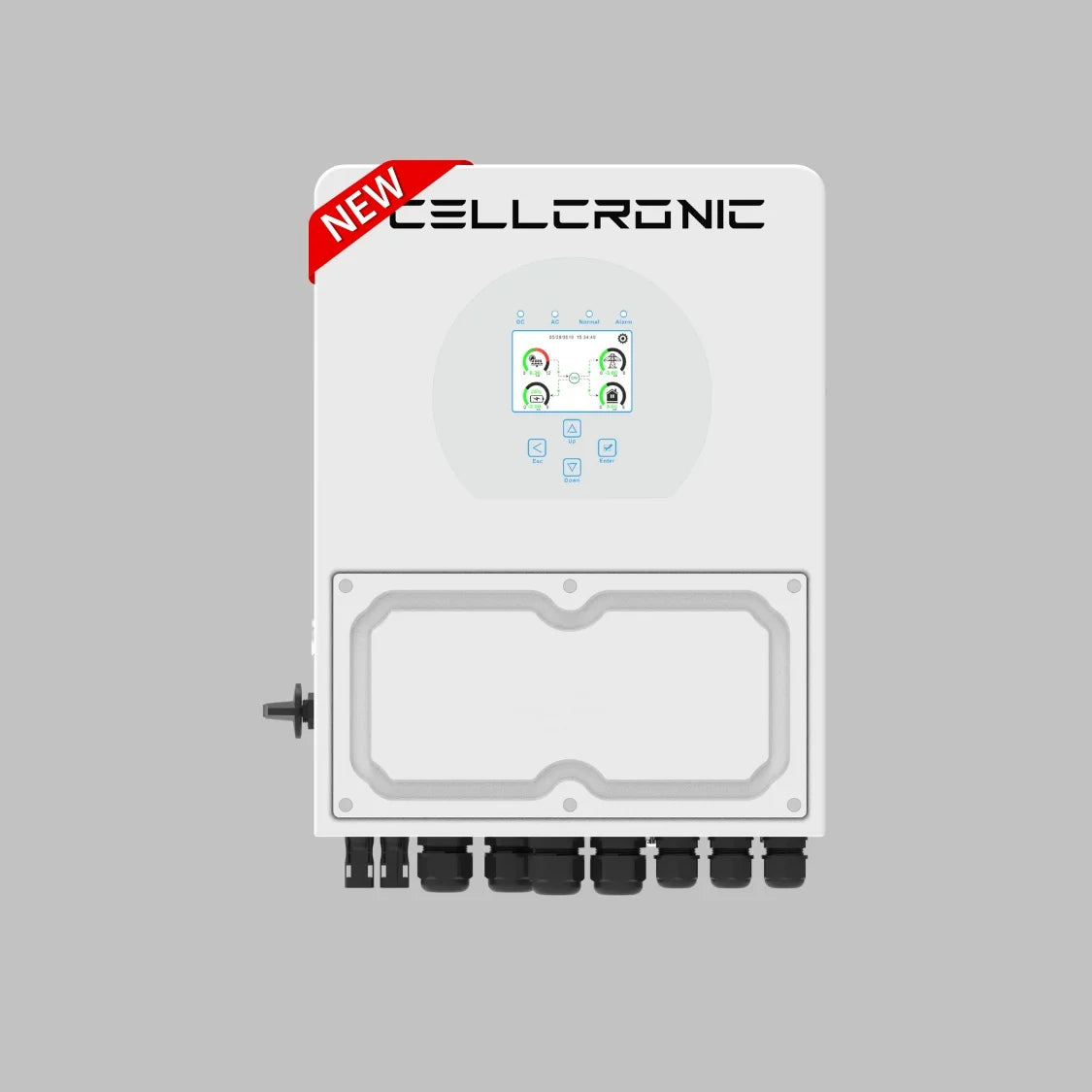

Cellcronic Galaxy 6G EU 5Kw (Version: 7G Pro) Dual MPPT Hybrid Inverter
Regular price
Rs. 125,000.00
Sale price
Rs. 125,000.00
Regular price
Unit price
Cellcronic Galaxy 6G EU 5Kw (Version: 7G Pro) Dual MPPT Hybrid Inverter
Regular price
Rs. 125,000.00
Sale price
Rs. 125,000.00
Regular price
Unit price
Product description
Key Specifications & Features
- AC couple to retrofifit existing solar system

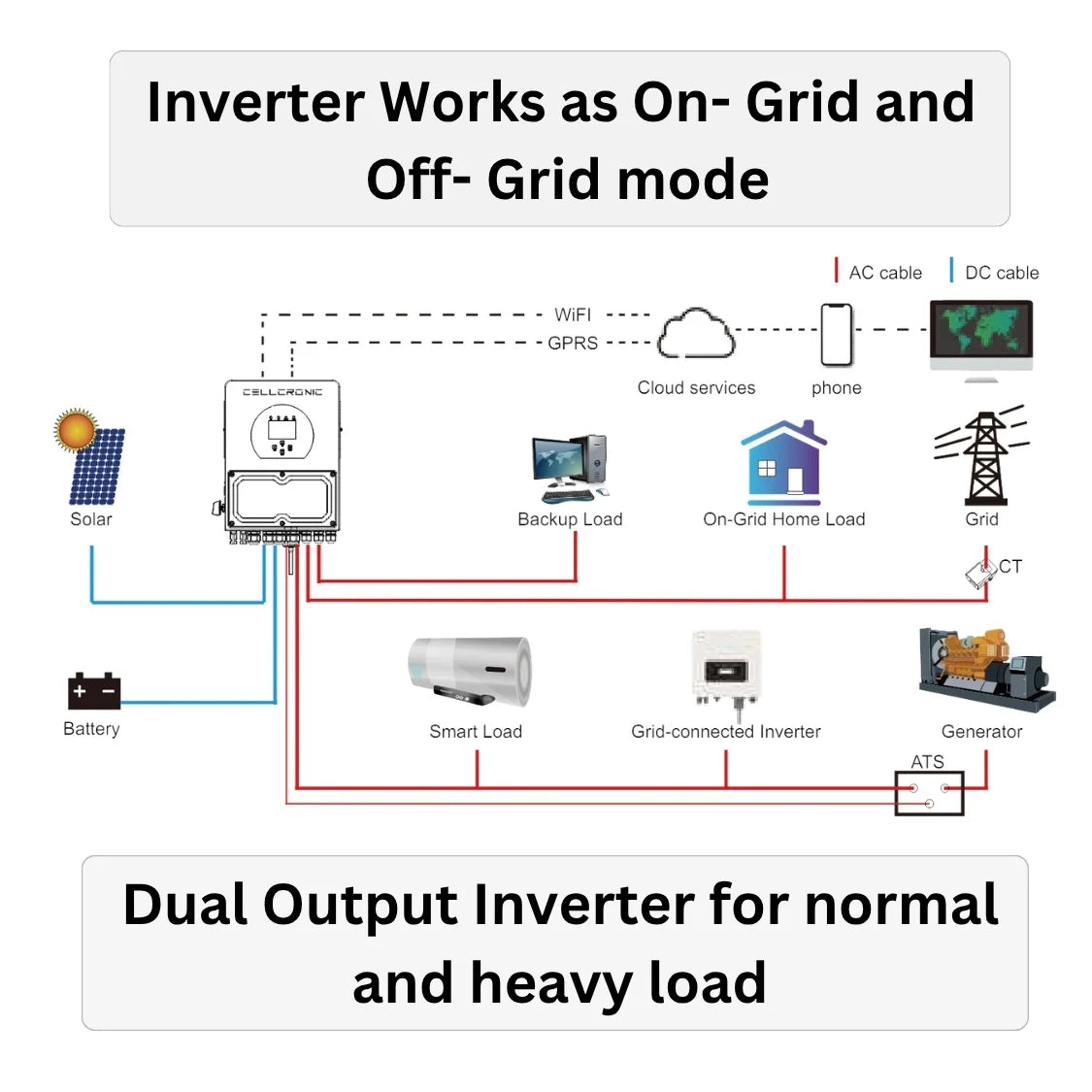

- Works as On- grid ans Off- Grid mode

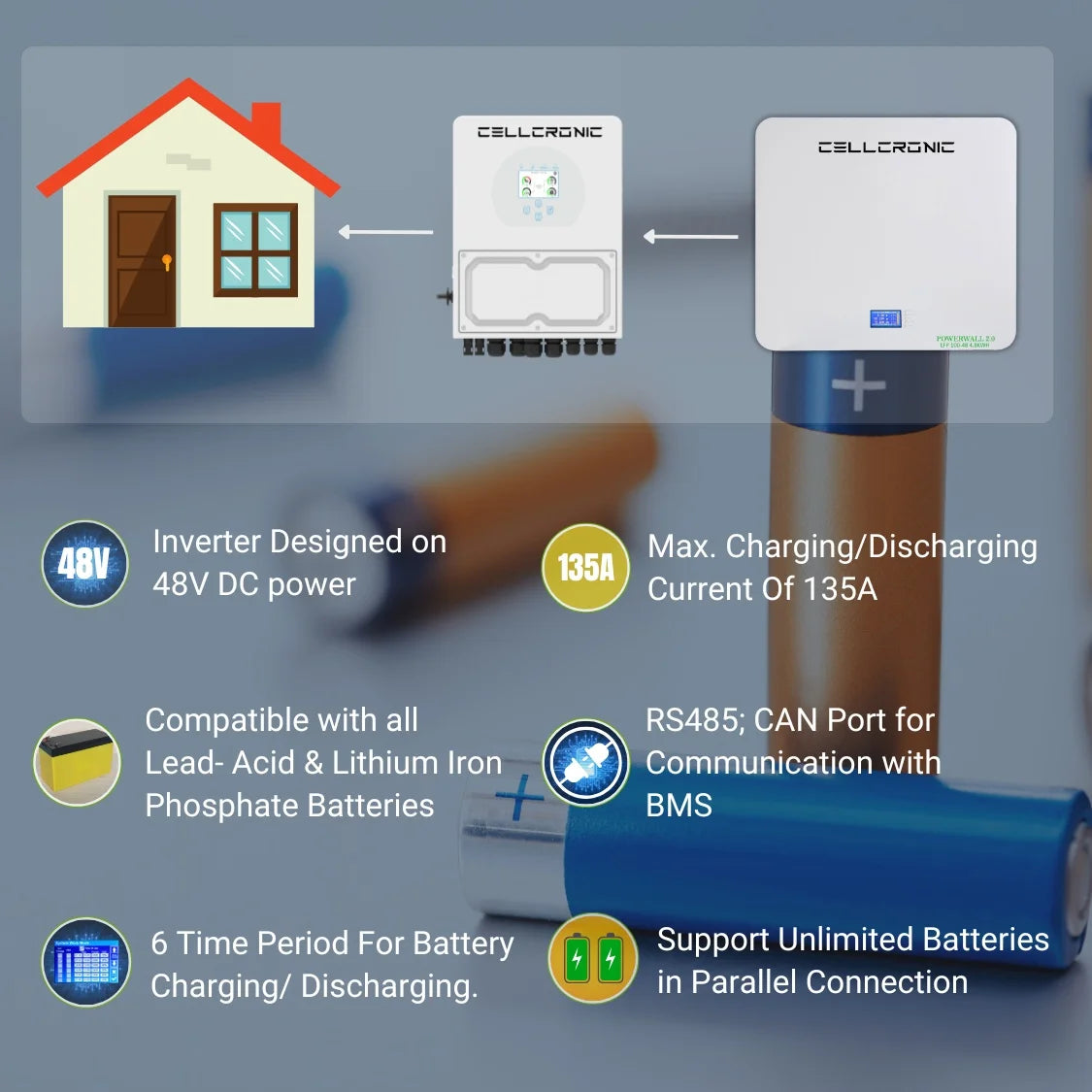

- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 150V-425VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 17kg

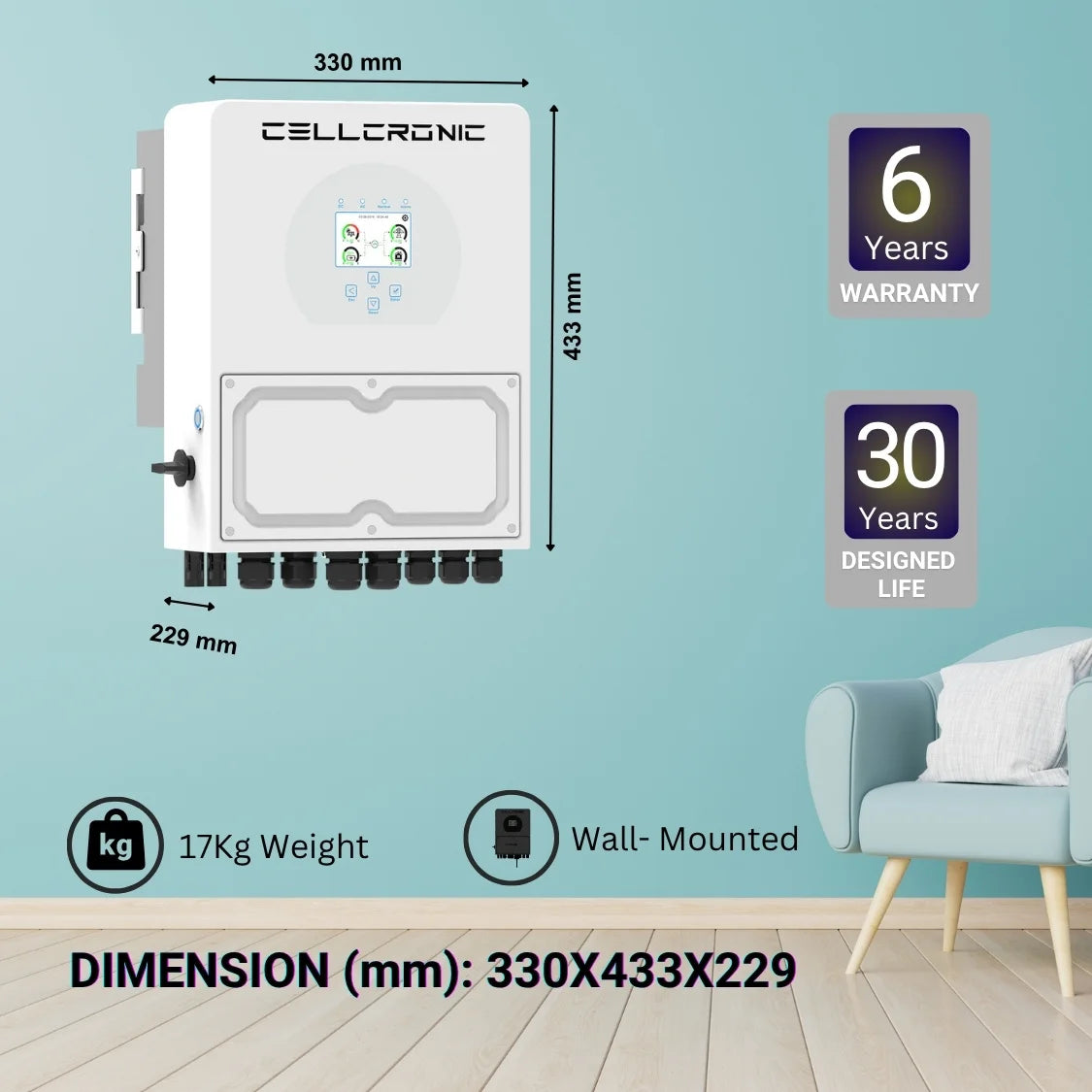

- Inverter Dimension 330W*433H*229D
- 30 years design life.
| Model Galaxy 6G EU 5Kw (Version: 7G Pro) Dual MPPT Hybrid Inverter | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 40~60V | |
| Max. Charging Current (A) | 135A | |
| Max. Discharging Current (A) | 135A | |
| Charging Curve | 3 Stages / Equalization | |
| External Temperature Sensor | Optional | |
| Charging Strategy for Li–ion Battery | Self-adaption to BMS | |
| PV STRING INPUT DATA | ||
| Max. DC Input Power(W) | 9600W | |
| Max PV Input Voltage (V） | 500V | |
| Start-up Voltage（V） | 125V | |
| MPPT Voltage Range（V） | 150V-425V | |
| Rated PV Input Voltage(V) | 370V | |
| Max Input Short-Circuit Current（A） | 17A+17A | |
| Max Operating PV Input Current（A) | 13A+13A | |
| No. of MPPT Trackers | 2 | |
| No. of Strings Per MPPT Tracker | 1+1 | |
| AC INPUT/OUTPUT DATA | ||
| Rated AC Input/Output Active Power（W） | 5000W | |
| Max AC Input/Output Apparent Power （VA） | 6600W | |
| Peak Power (off-grid) (W) | 2 times of rated power, 10S | |
| Rated AC Input/Output Current(A) | 21.8 | |
| Max AC Input/Output Current（A) | 28.7 | |
| Max. Continuous AC Passthrough(A) | 40A | |
| Power Factor | 0.8 leading to 0.8 lagging | |
| Output Frequency and Voltage | 50/60Hz;220/230/240Vac (Single Phase) | |
| Grid Type | Single Phase | |
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |
| EFFICIENCY | ||
| Max. Efficiency | 97.60% | |
| Euro Efficiency | 96.50% | |
| MPPT Efficiency | 99.90% | |
| PROTECTION | ||
| DC Polarity Reverse Connection Protection | Integrated | |
| AC Output Overcurrent Protection | Integrated | |
| Thermal Protection | Integrated | |
| AC Output Overvoltage Protection | Integrated | |
| AC Output Short Circuit Protection | Integrated | |
| DC Component Monitoring | Integrated | |
| Overvoltage Load Drop Protection | Integrated | |
| Island Protection Monitoring, Earth Fault Detection | Integrated | |
| DC Input Switch | Integrated | |
| DC Terminal Insulation Impedance Monitoring | Integrated | |
| Residual Current (RCD) Detection | Integrated | |
| Surge Protection | DC Type ll / AC Type ll | |
| CERTIFICATION AND STANDARDS | ||
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105 | |
| Safety Regulation | IEC/EN 61000-6-1/2/3/4, | |
| Safety EMC/Standard | IEC/EN 62109-1, IEC/EN 62109-2 | |
| GENERAL DATA | ||
| Operating Temperature Range(°C) | -40 to+60℃,＞45℃ Derating | |
| Cooling | Intelligent air cooling | |
| Noise(db) | <30 db | |
| Communication with BMS | RS485/RS232/CAN | |
| Weight (kg) | 17 | |
| Size (W*H*D GLmm) | 330*433*229（Excluding connectors and brackets） | |
| Protection Degree | IP65 | |
| Installation Style | Well-mounted | |
| Warranty | 6 Years Standard Warranty Expendable up to 10 Years | |

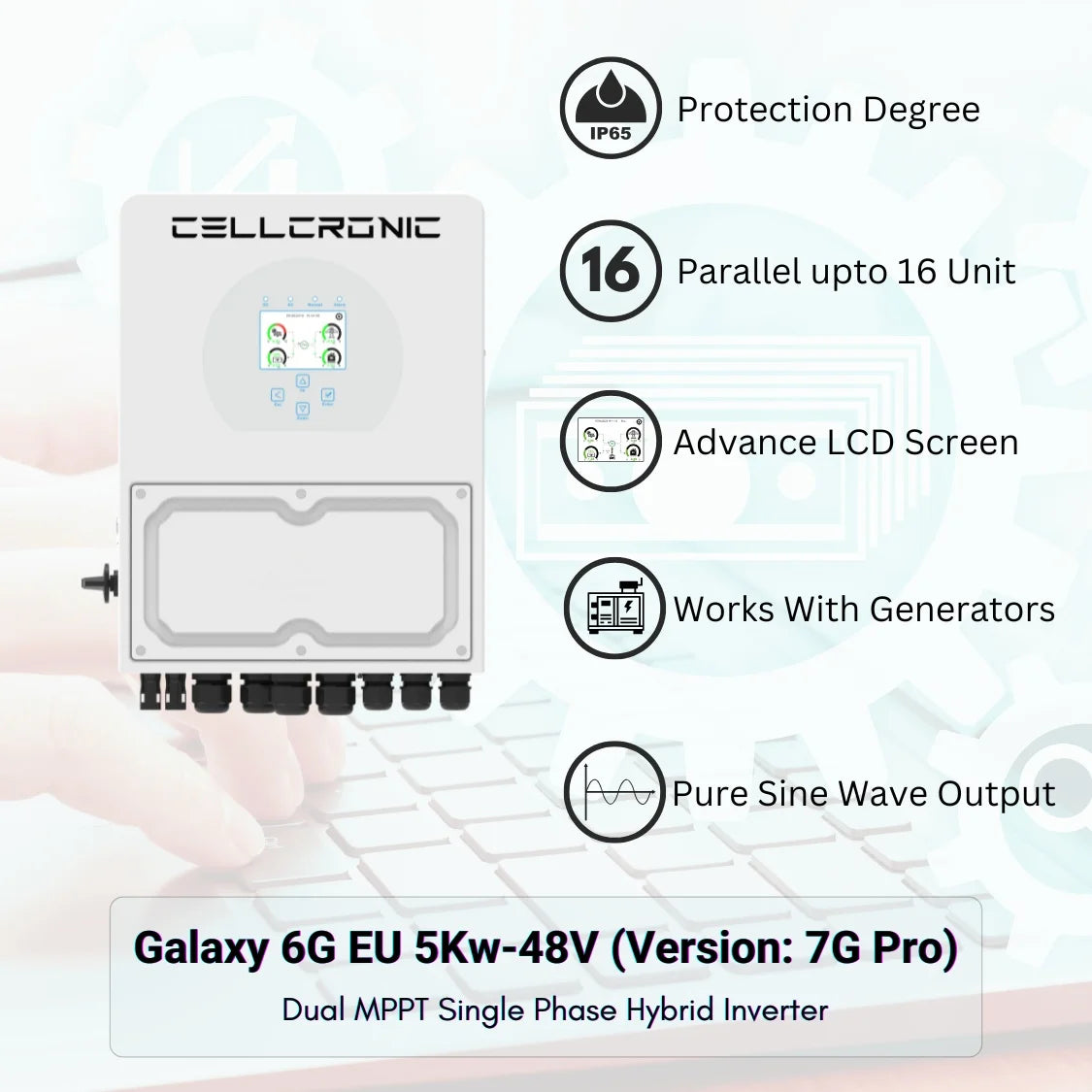

Colorful touch LCD, IP65 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.

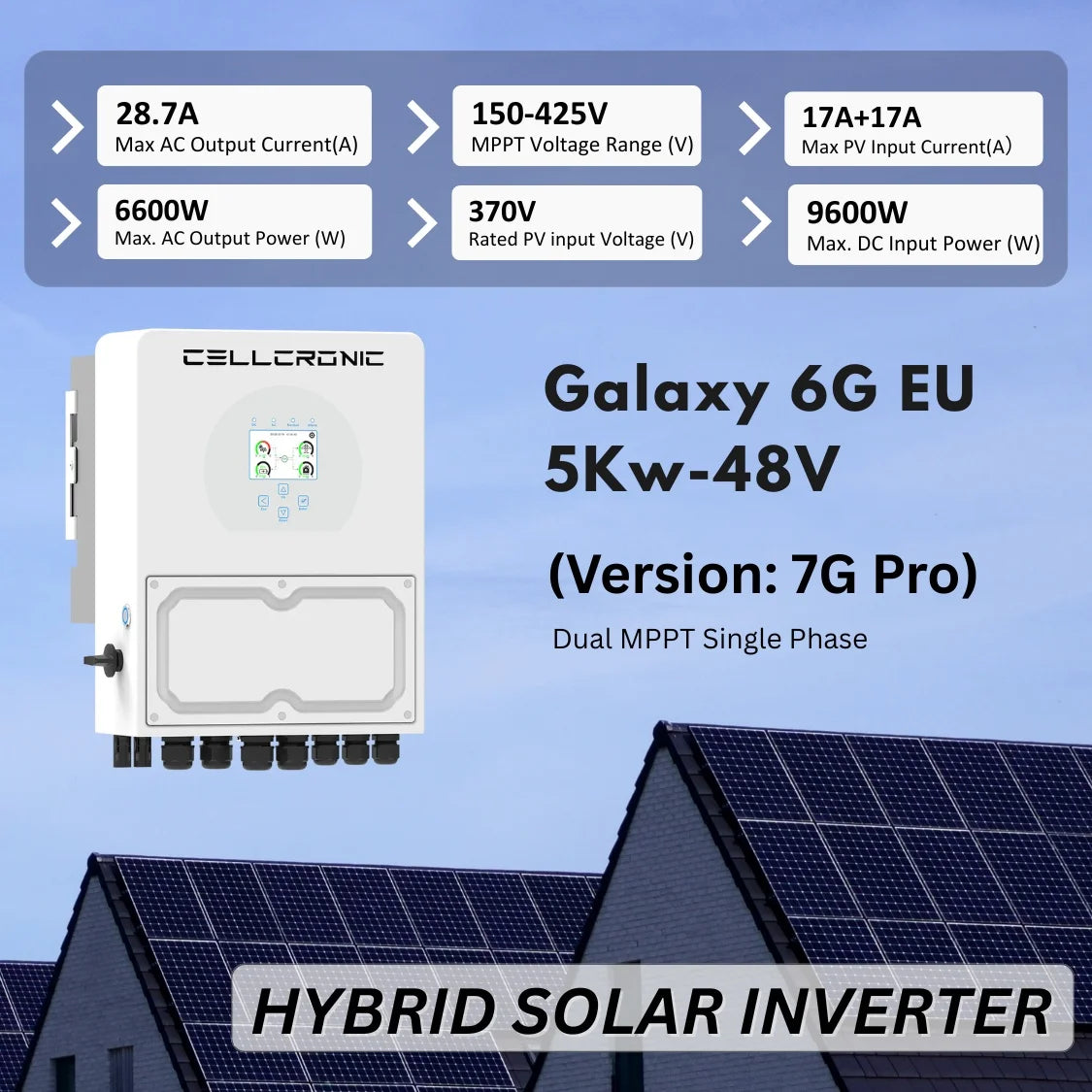

6600W Maximum Load Capacity & 9600W Solar Capacity.
6 time period for battery Charging/ discharging.
Max. Charging/discharging current of 135A

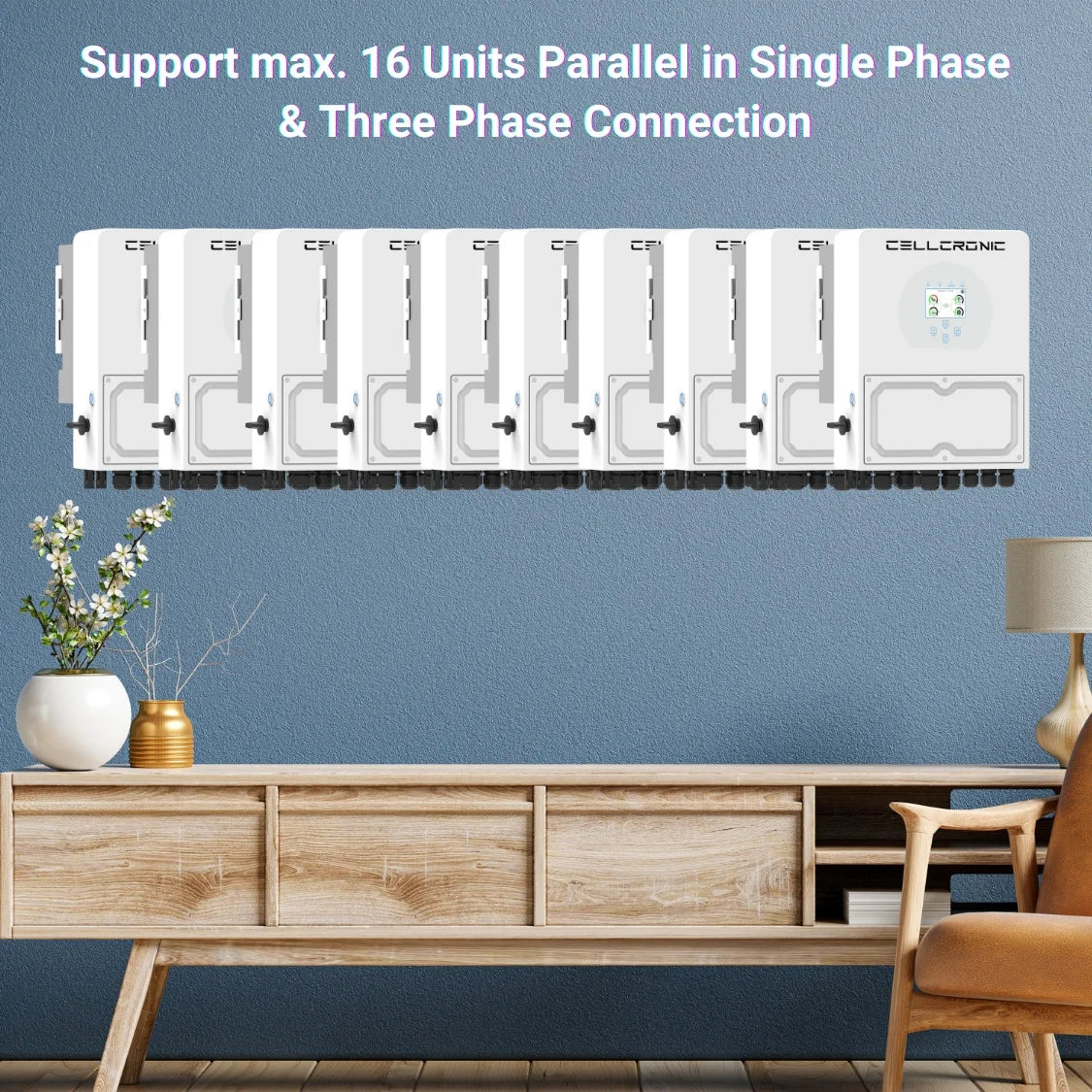

Support max. 16 units paralleled and three-phase application.
6 year warranty and can be expendable up to 10 year.
