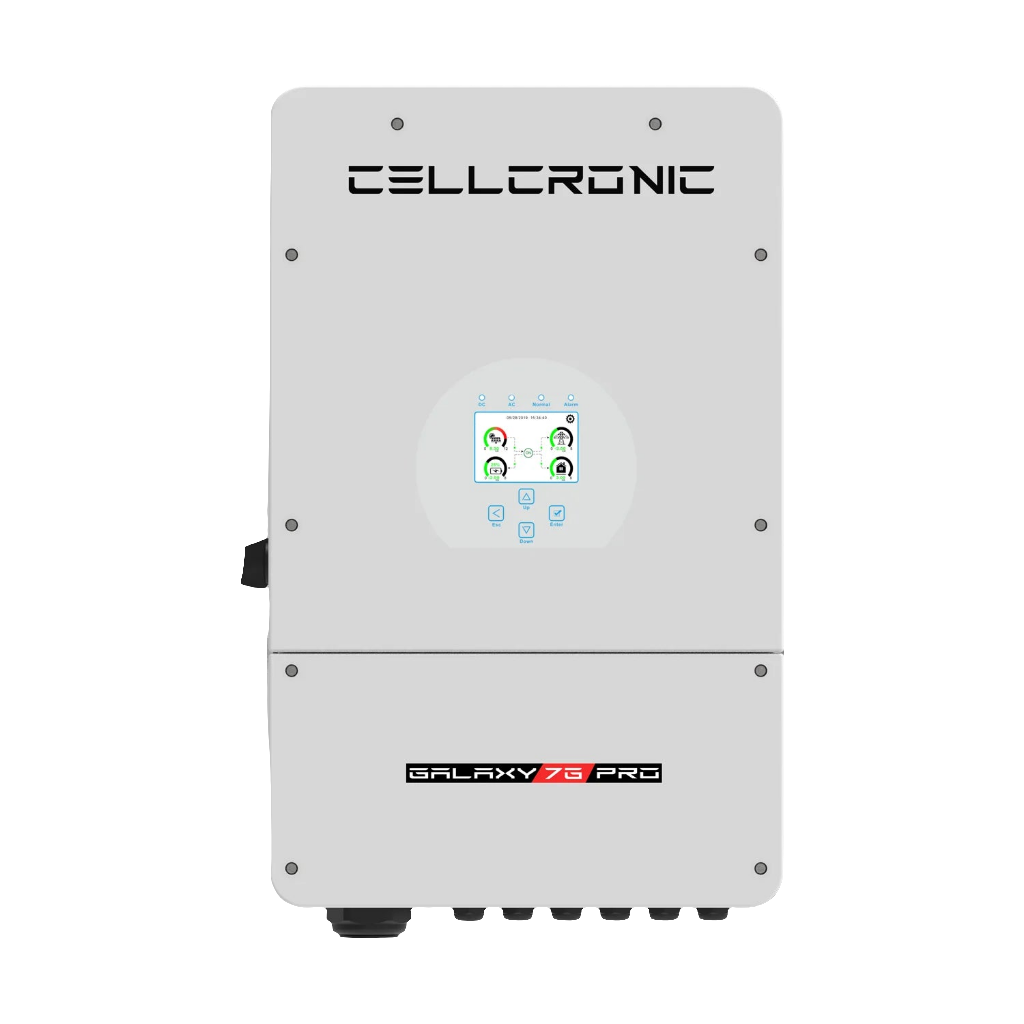

CELLCRONIC GALAXY 7G PRO 10KW-48V (Single Phase) Hybrid Inverter
Regular price
Rs. 236,011.90
Sale price
Rs. 236,011.90
Regular price
Rs. 245,535.00
Unit price
CELLCRONIC GALAXY 7G PRO 10KW-48V (Single Phase) Hybrid Inverter
Regular price
Rs. 236,011.90
Sale price
Rs. 236,011.90
Regular price
Rs. 245,535.00
Unit price
Product description
Key Specifications & Features
- AC couple to retrofit existing solar system
- Works as On- grid and Off- Grid mode
- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 150V-425VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 35.6kg
- Inverter Dimension 420Wx670Hx233D
- 30 years design life.
| Model | Galaxy 7G PRO 10kw 48v Single Phase Triple MPPT | ||
| Battery Input Data | |||
| Battery Type | Lead–acid or Lithium–ion | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 250A | ||
| Max. Discharging Current (A) | 250A | ||
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Optional | ||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| PV STRING INPUT DATA | |||
| Max. DC Input Power(W) | 18000W | ||
| PV input Voltage (V) | 500 | ||
| MPPT Range (V) | 150V-425V | ||
| Start-up Voltage (V) | 125 | ||
| PV input Current (A) | 26+26+26 | ||
| No. of MPPT Trackers | 3 | ||
| No. of Strings Per MPPT Tracker | 2+2+2 | ||
| AC OUTPUT DATA | |||
| Rated AC Output and UPS Power(W) | 12000W | ||
| Max. AC Output Power(W) | 13200W | ||
| Peak Power (off-grid) | 2 times of rated power, 10S | ||
| AC Output Rated Current(A) | 54.6/52.2 | ||
| Max. AC Current(A) | 54.6/52.2 | ||
| Max. Continuous AC Passthrough(A) | 60A | ||
| Output Frequency and Voltage | 50/60Hz;230/400Vac (Single Phase) | ||
| Grid Type | Single Phase | ||
| Current Harmonic Distortion | <3% (of nominal power) | ||
| EFFICIENCY | |||
| Max. Efficiency | 97.6% | ||
| Euro Efficiency | 96.5% | ||
| MPPT Efficiency | >99% | ||
| PROTECTION | |||
| PV Arc Fault Detection | Integrated(Except European Type) | ||
| PV Input Lightning Protection | Integrated | ||
| Anti-island Protection | Integrated | ||
| PV String Input Reverse Polarity Protection | Integrated | ||
| Insulation Resistor Detection | Integrated | ||
| Residual Current Monitoring Unit | Integrated | ||
| Output Over Current Protection | Integrated | ||
| Output Shorted Protection | Integrated | ||
| Output Over Voltage Protection | Integrated | ||
| Surge Protection | TYPE II(DC), TYPE II(AC) | ||
| CERTIFICATION AND STANDARDS | |||
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | ||
| Safety Regulation | IEC/EN 61000-6-1/2/3/4 | ||
| EMC | IEC/EN 62109-1, IEC/EN 62109-2 | ||
| GENERAL DATA | |||
| Operating Temperature Range(°C) | -40 to +60℃, >45℃ Derating | ||
| Cooling | Intelligent Air Cooling | ||
| Noise(dB) | <45 | ||
| Communication with BMS | RS485; CAN | ||
| Weight (kg) | 35.6 | ||
| Size (mm) | 420×670×233 (Excluding Connectors and Brackets) | ||
| Protection Degree | IP65 | ||
| Installation Style | Wall-mounted | ||
| Warranty | 6 Years/10 Years | ||
