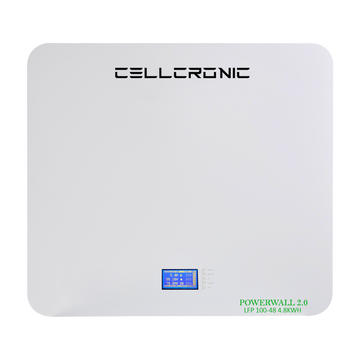

CELLCRONIC POWERWALL 2.0 5KW-48V-100AH Lithium Battery
Regular price
Rs. 121,185.59
Sale price
Rs. 121,185.59
Regular price
Rs. 122,880.00
Unit price
CELLCRONIC POWERWALL 2.0 5KW-48V-100AH Lithium Battery
Regular price
Rs. 121,185.59
Sale price
Rs. 121,185.59
Regular price
Rs. 122,880.00
Unit price
Product description
| Item | General Parameter | Remark |
| Combination Method | 15S | |
| Rated Capacity | Typical-100Ah, Minimum-100Ah | Standard Discharge After Standard Charge(Package) |
| Factory Voltage | 49.5-50.5V | Mean Operation Voltage |
| Voltage at end of Discharge | 40-42.5V | Discharge Cut-Off Voltage |
| Charging Voltage | 53.2-54V | |
| Internal Impedance | ≤50mΩ | Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times |
| Standard charge | Constant Current 20A Constant Voltage see No.5 0.01CA cut-off | Charge time : Approx. 6h |
| Standard discharge | Constant current：20A end voltage see NO.4 | |
| Maximum Continuous Charge Current | 100A | |
| Maximum Continuous Discharge Current | 120A | |
| Operation Temperature Range | Charge: 0~45°C, Discharge: -20~55°C | 60±25%R.H. Bare Cell |
| Storage Temperature Range | Less than 12 months : -10~35℃, less than 3 months: -10~45℃, Less than 7 day : -20~65℃ | 60±25%R.H. at the shipment state |
| Cycle life | ≥4500cycle | at 80% DOD |
| Dimensions | 480*450*222 mm | Include case |
| Weight | 48kg | Include case |
| Volumetric specific energy | 100 WH/L | Include case |
| Gravimetric specific energy | 99WH/KG | Include case |
