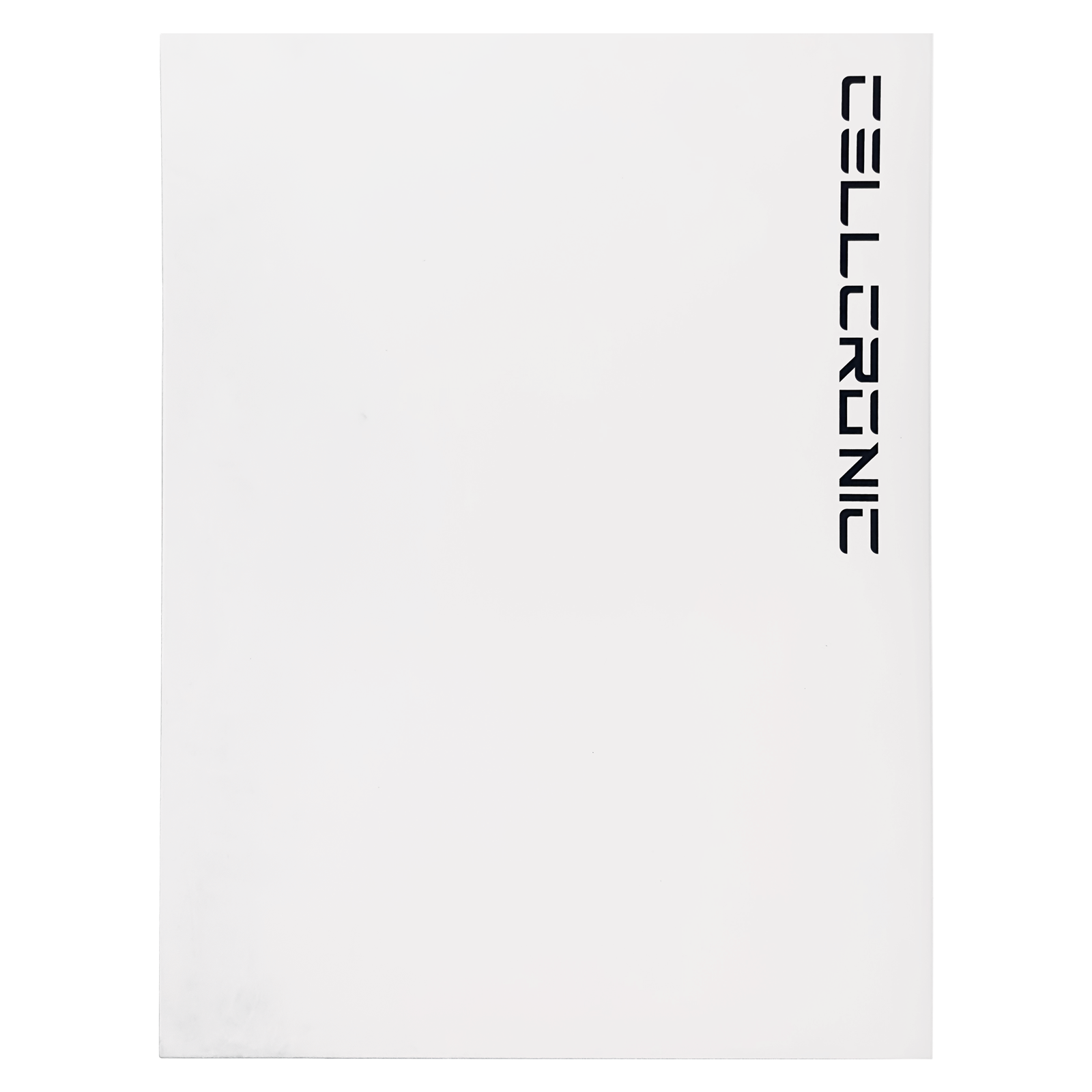

CELLCRONIC POWERWALL 3.0 PLUS 9.6KW-48V-200AH Lithium Battery
Regular price
Rs. 296,609.00
Sale price
Rs. 296,609.00
Regular price
Unit price
CELLCRONIC POWERWALL 3.0 PLUS 9.6KW-48V-200AH Lithium Battery
Regular price
Rs. 296,609.00
Sale price
Rs. 296,609.00
Regular price
Unit price
Product description
|
Model Powerwall 3.0 Plus 9.6Kw-48V-200Ah LiFePo4 Battery |
||
| Electrical Characteristics | ||
| Nominal voltage | 48V | |
| Nominal capacity | 200Ah | |
| Energy | 9.6Kwh | |
| Cycle Life | 6000 Life Cycle at 80% DOD | |
| Months Self | ≤3.5% per month at 25℃ | |
| Standard Charge | ||
| Charge Voltage | DC 58.4V | |
| Standard Charge | 0.2C 40A | |
| Max. Charge Current | 0.5C 100A | |
| Standard Discharge | ||
| Max. Continuous Discharge Current | 1C 200A | |
| Peak discharge current | 200A (<3s) | |
| Discharge Cut-off Voltage | 40V | |
| Temperature | ||
| Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage temperature | -10°C ~ + 45°C（every month needs to do charge and discharge for one time if storage and no put in use) | |
| Initial Impedance | <50mΩ | |
