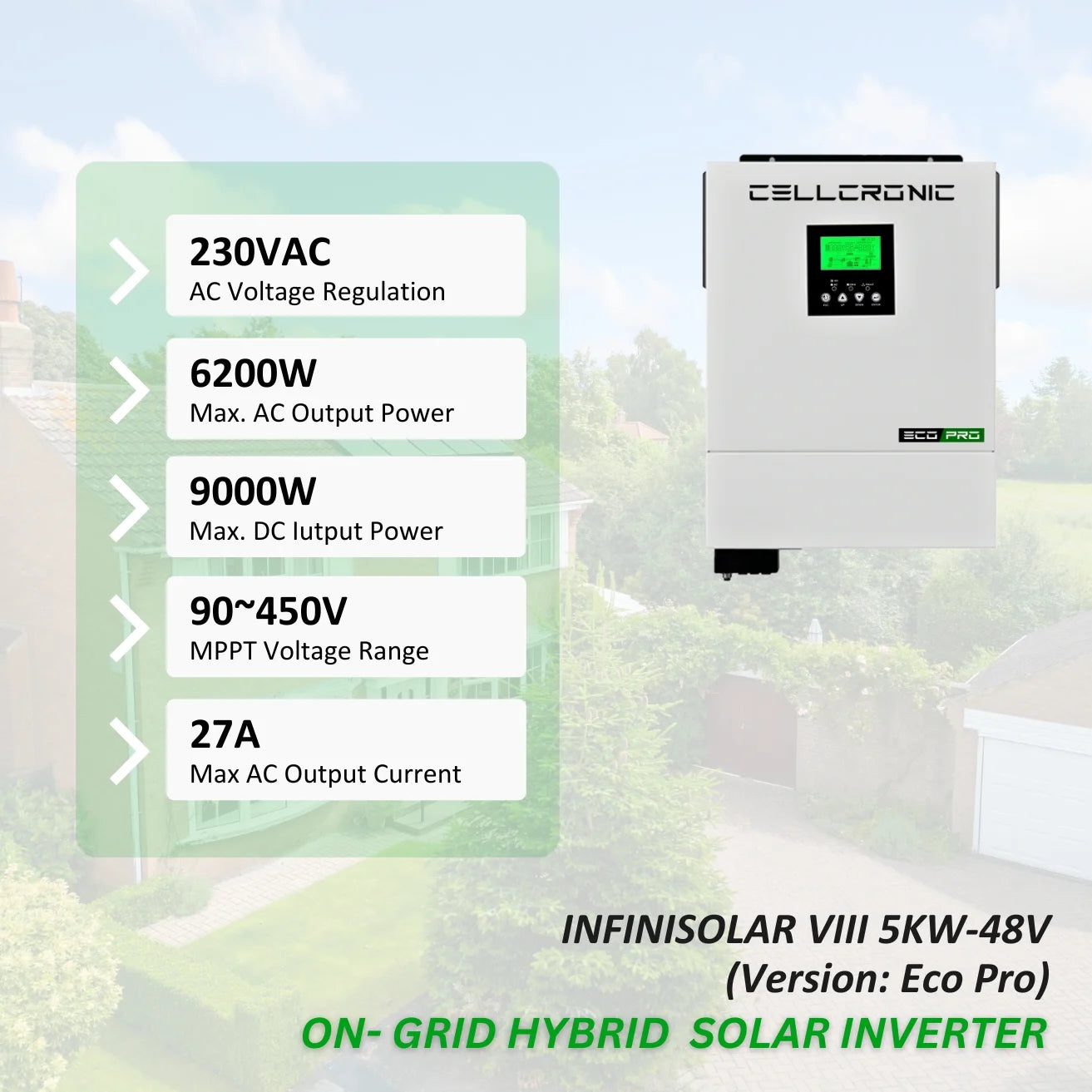

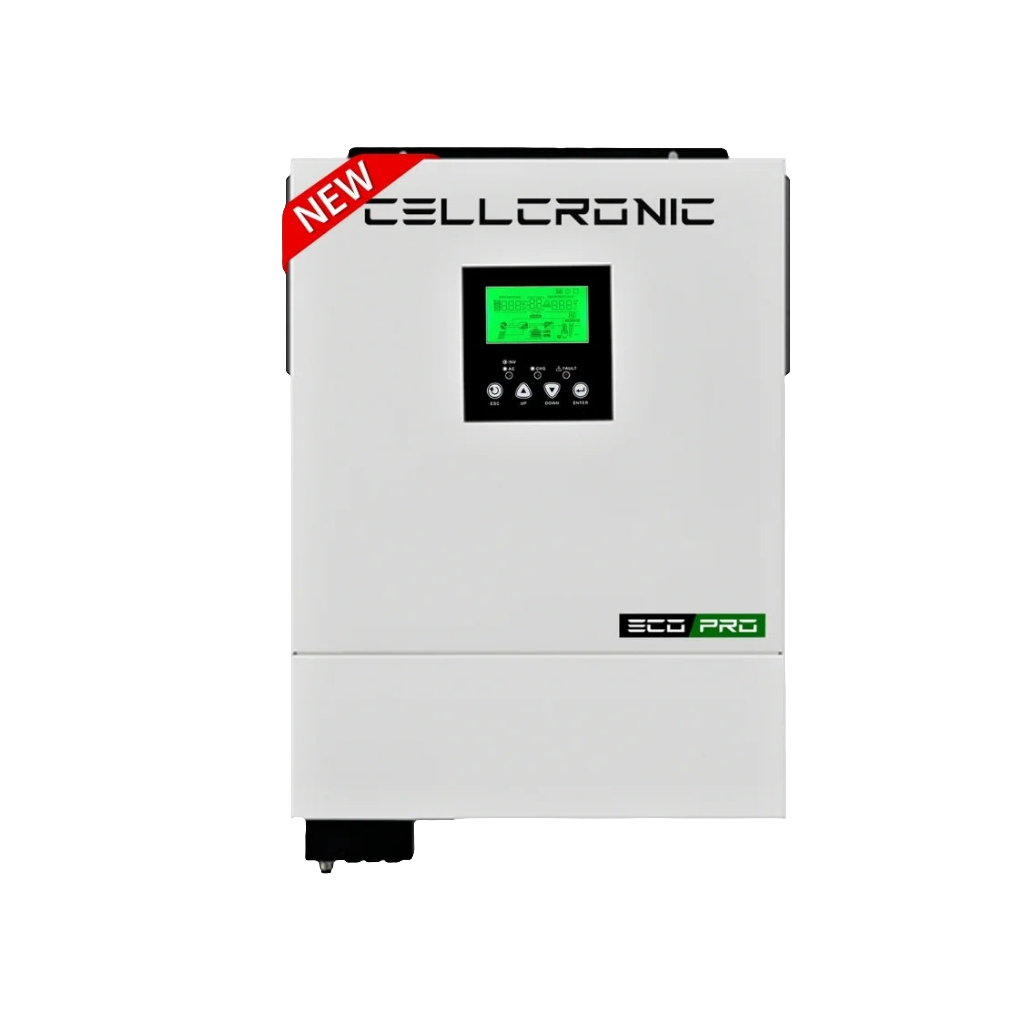

Cellcronic InfiniSolar VIII 5KW-48V Single MPPT Hybrid Inverter (Version: Eco Pro)
Regular price
Rs. 65,892.85
Sale price
Rs. 65,892.85
Regular price
Rs. 68,749.11
Unit price
Cellcronic InfiniSolar VIII 5KW-48V Single MPPT Hybrid Inverter (Version: Eco Pro)
Regular price
Rs. 65,892.85
Sale price
Rs. 65,892.85
Regular price
Rs. 68,749.11
Unit price
Product description
Key Specifications & Features
- Dual Output for Normal Load & Smart Load Management

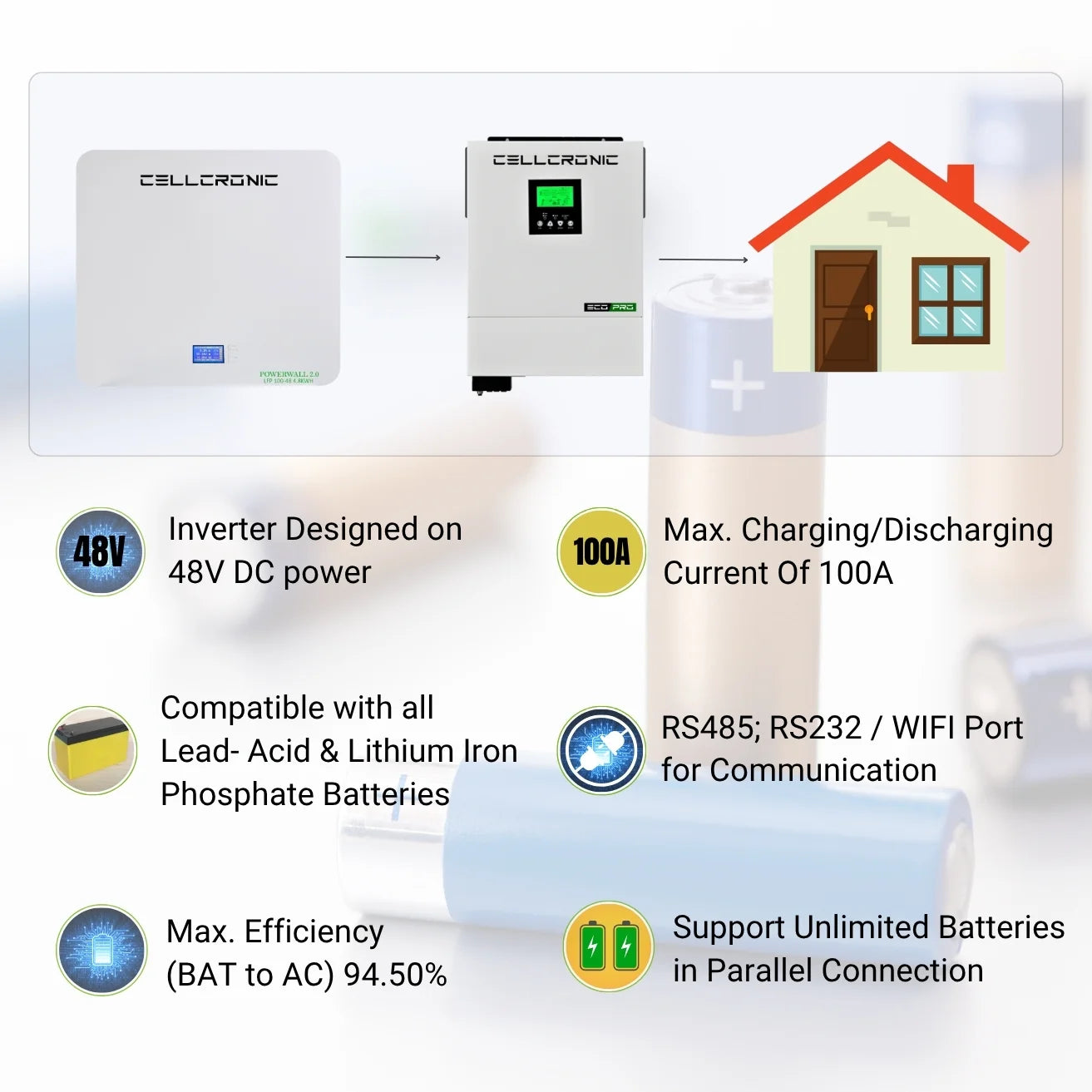

- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- Maximum PV Input Current 18A
- Wide PV Input Voltage Range 90VDC-450VDC
- Detachable LCD Control module with various communications
- Intelligent IOT based Wi-Fi system
- Reserved Communication Port for BMS RS232, RS485
- Battery equalization extends lifecycle
- Battery independency
- Replaceable Fan Design
- 2 Year Warranty
- Inverter Weight 10.4KG
| Model InfiniSolar VIII 5KW-48V (Version: Eco Pro) Hybrid Inverter | ||
| Battery Input Data | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 40~60V | |
| Battery Voltage VDC | 48 VDC | |
| Floating Charge Voltage | 54 VDC | |
| Overcharge Protection | 63 VDC | |
| Charging Strategy for Li–lon Battery | Self-adaption to BMS | |
| PV STRING INPUT DATA | ||
| Max. DC Input Power(W) | 8000W | |
| Maximum PV Array Open Circuit Voltage | 500 VDC | |
| MPPT Voltage Range (V) | 90-450 VDC (Min. 100VDC without Battery Connected) | |
| Maximum Solar Charge Current | 100 A | |
| Maximum AC Charge Current | 100 A | |
| Maximum Charge Current | 100 A | |
| PV Input Current (A) | 18 A | |
| No. of Strings Per MPPT Tracker | 1 | |
| AC OUTPUT DATA | ||
| Rated AC Output and UPS Power(W) | 5000W | |
| Max. AC Output Power(W) | 6200W | |
| Peak Power (off grid) | 2 time of rated power, 10 S (8400VA) | |
| AC Output Rated Current(A) | 21.8 A | |
| Max. AC Current(A) | 27 A | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) | |
| Power Factor | 0.8 leading to 0.8 lagging | |
| Output Frequency and Voltage | 50/60Hz; 220/230Vac L+N+PE (single phase) | |
| Grid Type | Single Phase | |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |
| DC Injection Current | <0.5% In | |
| EFFICIENCY | ||
| Max. Efficiency | 93.00% | |
| Euro Efficiency | 96.50% | |
| MPPT Efficiency | 99.90% | |
| PROTECTION | ||
| PV Input Lightning Protection | Integrated | |
| Anti-island Protection | Integrated | |
| PV String Input Reverse Polarity Protection | Integrated | |
| Insulation Resistor Detection | Integrated | |
| Residual Current Monitoring Unit | Integrated | |
| Output Over Current Protection | Integrated | |
| Output Shorted Protection | Integrated | |
| Output Over Voltage Protection | Integrated | |
| Surge Protection | DC Type ll / AC Type ll | |
| CERTIFICATION AND STANDARDS | ||
| Grid Regulation | EN50549-1, VDE0126, IEC61727, VDEN4105, G99, CEI0-21, NRS097, NBR16149/16150, RD1699 | |
| Safety Regulation | IEC62109-1/-2 | |
| EMC | IEC62109-1/-2 | |
| GENERAL DATA | ||

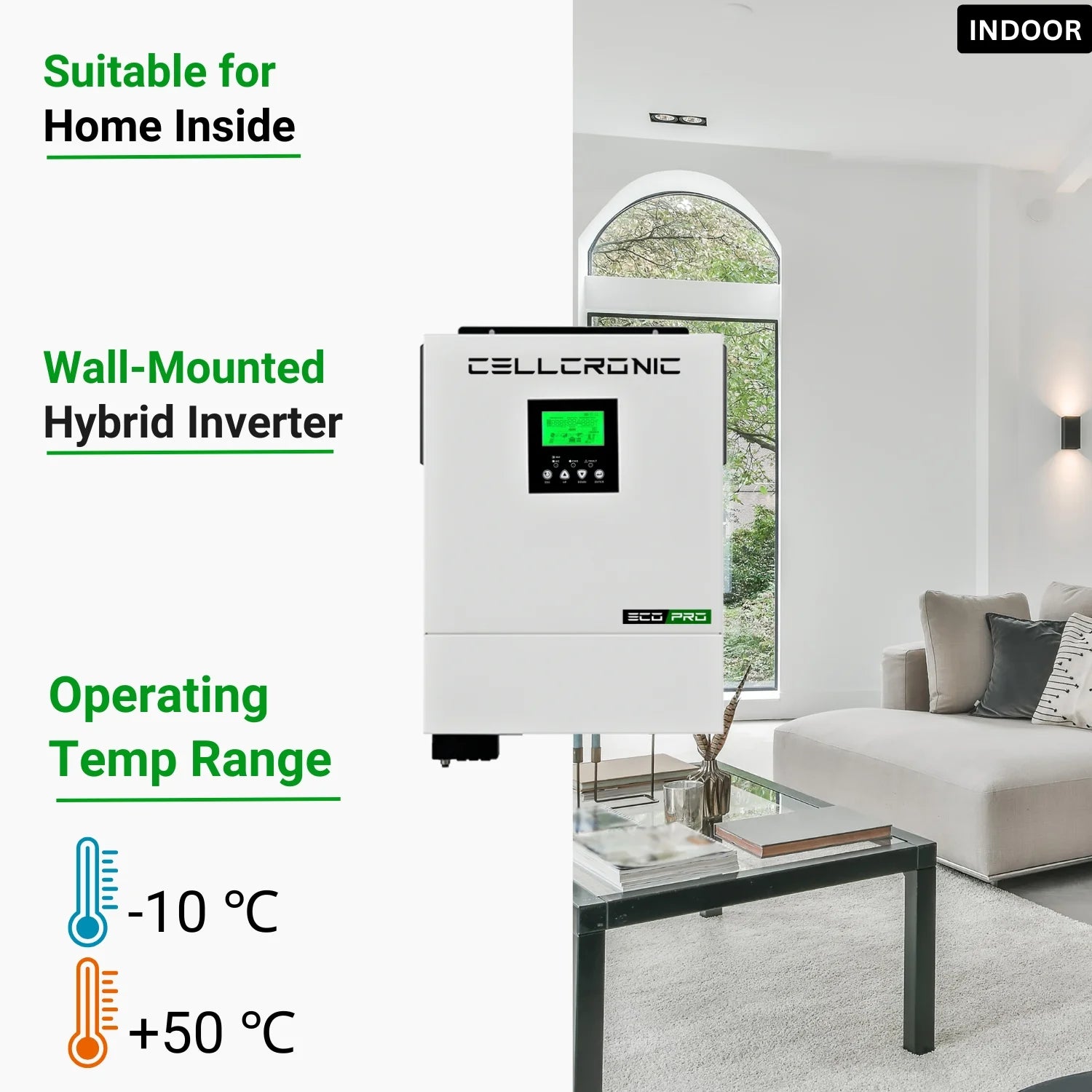

| Operating Temperature (°C) | -10°C to 50°C | |
| Storage Temperature (°C) | -15°C to 60°C | |
| Operating Humidity | 5% to 95% Relative Humidity (Non-Condensing) | |
| Cooling | Fan Cooling | |
| Noise(db) | <30 db | |
| Communication with BMS | RS485/RS232/CAN | |
| Weight (kg) | 10.4 KG | |

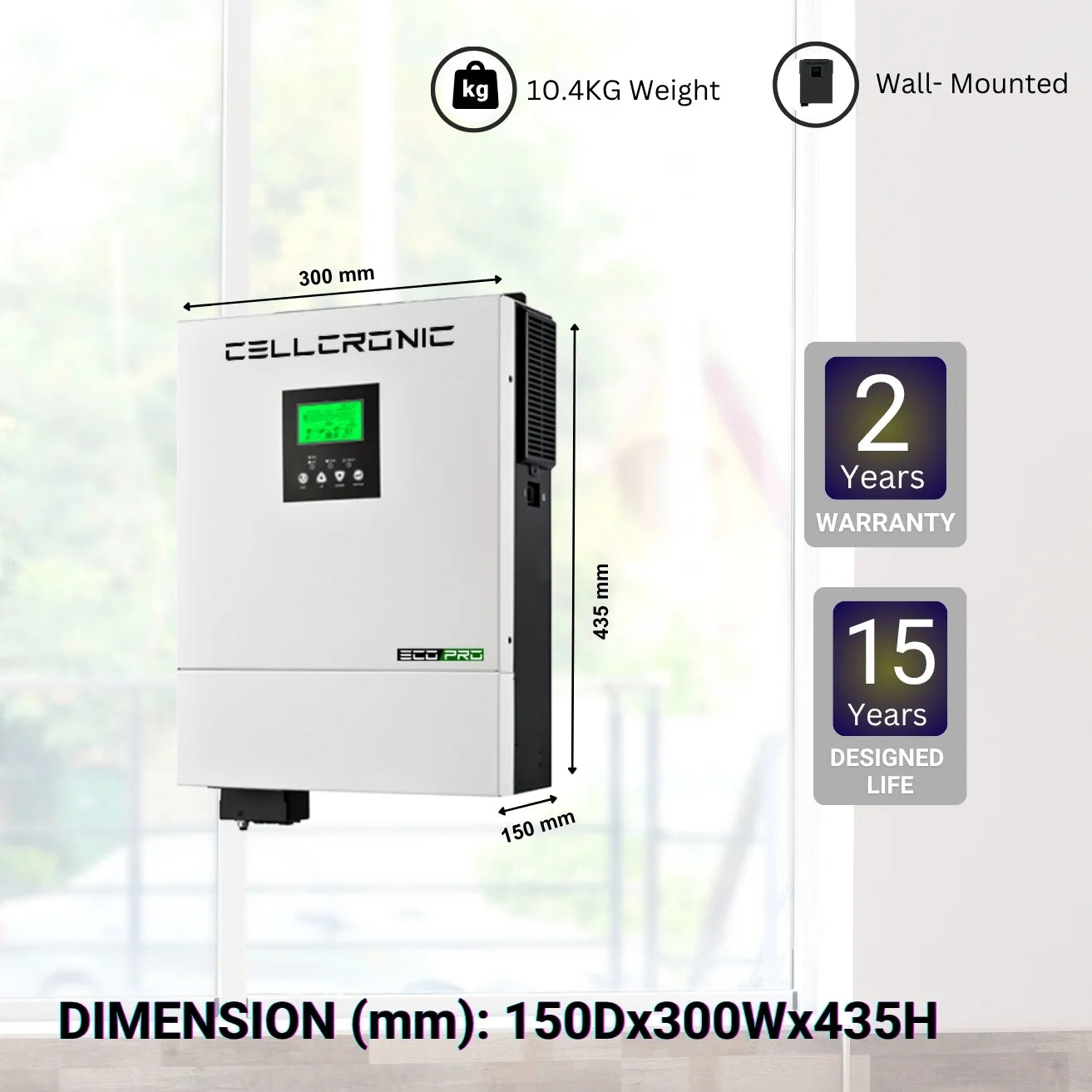

| Size (mm) | 150×300×435 (Excluding Connectors and Brackets) | |
| Protection Degree | IP20 | |
| Installation Style | Wall-mounted | |
| Warranty | 2 Years | |

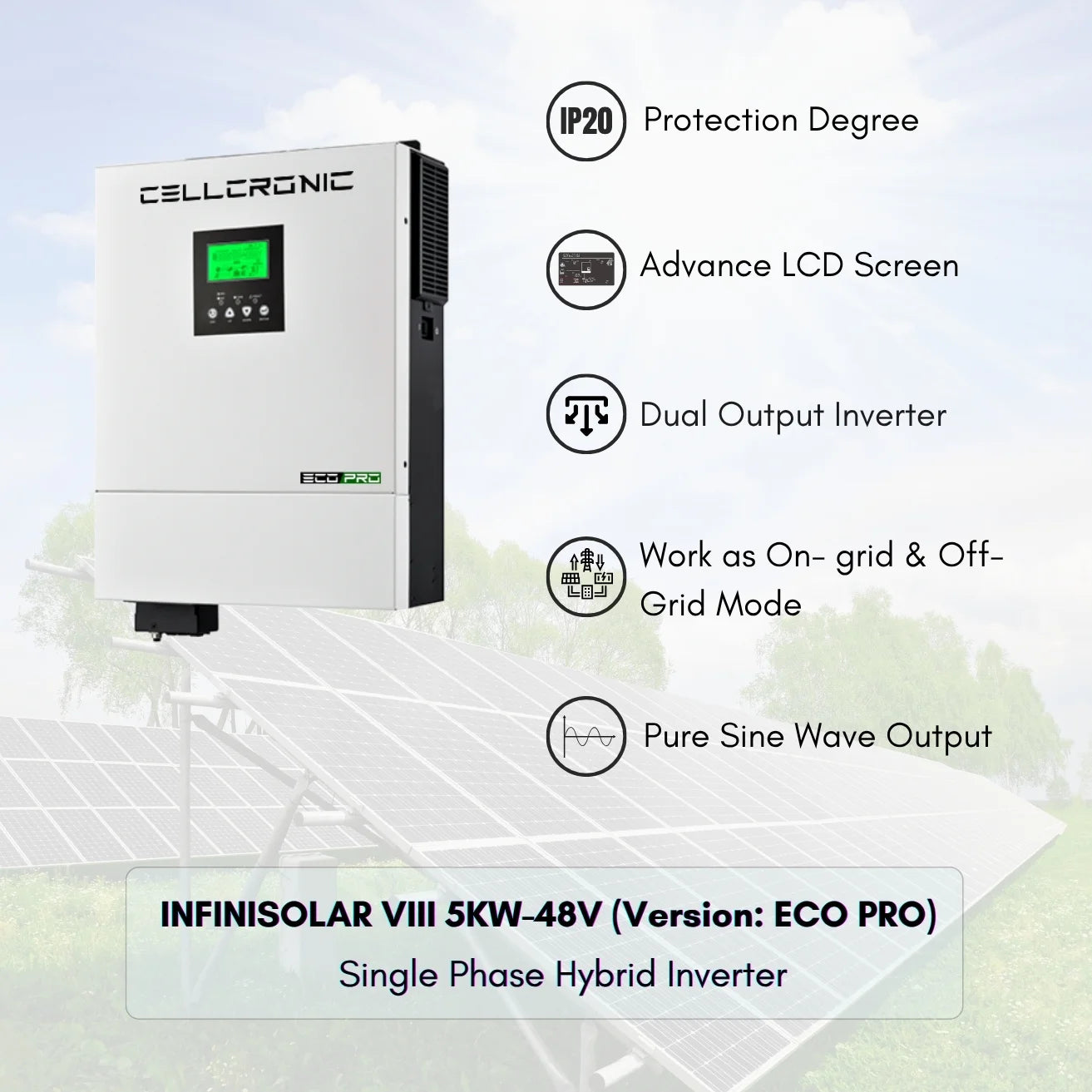

User Friendly LCD Operation , IP20 Protection Degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
6200W Maximum Load Capacity & 8000W Solar Capacity.
Battery equalization extends lifecycle
Max. Charging/discharging current of 100A
Build In WIFI for mobile monitoring (App is available)
2 year warranty
