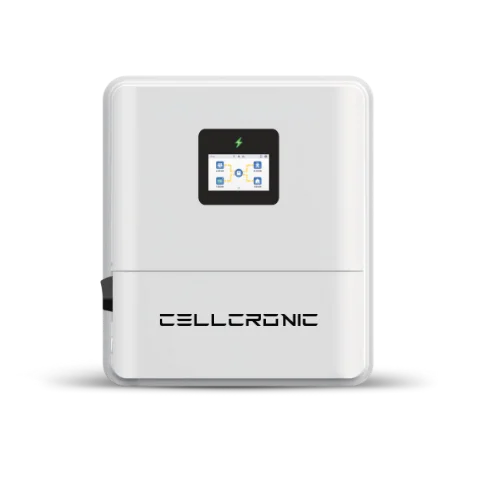

Cellcronic-5K Version Delta Pro 5KW-48V Dual MPPT (Single Phase) Hybrid Inverter
Regular price
Rs. 89,284.82
Sale price
Rs. 89,284.82
Regular price
Unit price
Cellcronic-5K Version Delta Pro 5KW-48V Dual MPPT (Single Phase) Hybrid Inverter
Regular price
Rs. 89,284.82
Sale price
Rs. 89,284.82
Regular price
Unit price
Product description
Key Specifications & Features
- AC couple to retrofifit existing solar system
- Works as On- grid ans Off- Grid mode
- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 70V-540VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 16kg
- Inverter Dimension 367mm*421mm*215mm
- 25 years design life
| Model Galaxy-5K Version-Delta Pro Dual MPPT Hybrid Inverter | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 40~60V | |
| Max. Charging Current (A) | 135A | |
| Max. Discharging Current (A) | 135A | |
| Charging Curve | 3 Stages / Equalization | |
| External Temperature Sensor | Optional | |
| Charging Strategy for Li–ion Battery | Self-adaption to BMS | |
| PV STRING INPUT DATA | ||
| Max. DC Input Power(W) | 10,000W | |
| Max PV Input Voltage (V） | 500V | |
| Start-up Voltage（V） | 90V | |
| MPPT Voltage Range（V） | 70V-540V | |
| Rated PV Input Voltage(V) | 370V | |
| Max. PV Input Current (A) | 18A+18A | |
| Max. Short-Circuit Current (A) | 25A+25A | |
| No. of MPPT Trackers | 2 | |
| No. of Strings Per MPPT Tracker | 1+1 | |
| AC INPUT/OUTPUT DATA | ||
| Rated AC Input/Output Active Power（W） | 5000W | |
| Max AC Input/Output Apparent Power （VA） | 6600W | |
| Peak Power (off-grid) (W) | 2 times of rated power, 10S | |
| Rated AC Input/Output Current(A) | 22.8/21.8 | |
| Max AC Input/Output Current（A) | 28.7 | |
| Max. Input Power From Grid | 9,000W | |
| Max. Continuous AC Passthrough(A) | 41A | |
| Power Factor Adjustment Range | > 0.99 @rated power (Adjustable 0.8 LD – 0.8 LG) | |
| Grid Voltage Range | 150V-300V (Adjustable) | |
| Rated Input/Output Grid Frequency/Range(Hz) | 45Hz-55Hz/55Hz-65Hz (Adjustable) | |
| Rated Grid Voltage (V) | 220V/230 0.85Un-1.1Un | |
| Grid Type | Single Phase | |
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |
| EFFICIENCY | ||
| Max. Efficiency | 97.30% | |
| Euro Efficiency | 96.80% | |
| MPPT Efficiency | 99.90% | |
| PROTECTION | ||
| DC Polarity Reverse Connection Protection | Integrated | |
| AC Output Overcurrent Protection | Integrated | |
| Thermal Protection | Integrated | |
| AC Output Overvoltage Protection | Integrated | |
| AC Output Short Circuit Protection | Integrated | |
| DC Component Monitoring | Integrated | |
| Overvoltage Load Drop Protection | Integrated | |
| Island Protection Monitoring, Earth Fault Detection | Integrated | |
| DC Input Switch | Integrated | |
| DC Terminal Insulation Impedance Monitoring | Integrated | |
| Residual Current (RCD) Detection | Integrated | |
| Surge Protection | DC Type ll / AC Type ll | |
| CERTIFICATION AND STANDARDS | ||
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105 | |
| Safety Regulation | IEC/EN 61000-6-1/2/3/4, | |
| Safety EMC/Standard | IEC/EN 62109-1, IEC/EN 62109-2 | |
| GENERAL DATA | ||
| Operating Temperature Range(°C) | -25 to +60℃, >45℃ Derating | |
| Cooling | Natural Cooling | |
| Noise(db) | <30 db | |
| Communication with BMS | RS485; CAN | |
| Weight (kg) | 16 Kg | |
| Size (W*H*D GLmm) | 367mm*421mm*215mm | |
| Protection Degree | IP65 | |
| Installation Style | Well-mounted | |
| Warranty | 2 Years Standard Warranty Expendable up to 5 Years | |
Colorful touch LCD, IP65 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
6600W Maximum Load Capacity & 10000W Solar Capacity.
6 time period for battery Charging/ discharging.
Max. Charging/discharging current of 135A
Support max. 16 units paralleled and three-phase application.
2 year warranty and can be expendable up to 5 year.
Also works with generators
