Cellcronic Powerwall 2.0 Plus-100Ah-51.2V-5.12Kwh LiFePo4 Battery

Cellcronic Powerwall 2.0 Plus-100Ah-51.2V-5.12Kwh LiFePo4 Battery

Regular price Rs. 148,304.24
Sale price Rs. 148,304.24 Regular price
Unit price
Product description

Key Specifications & Features

  1. Lightweight: 52 KG

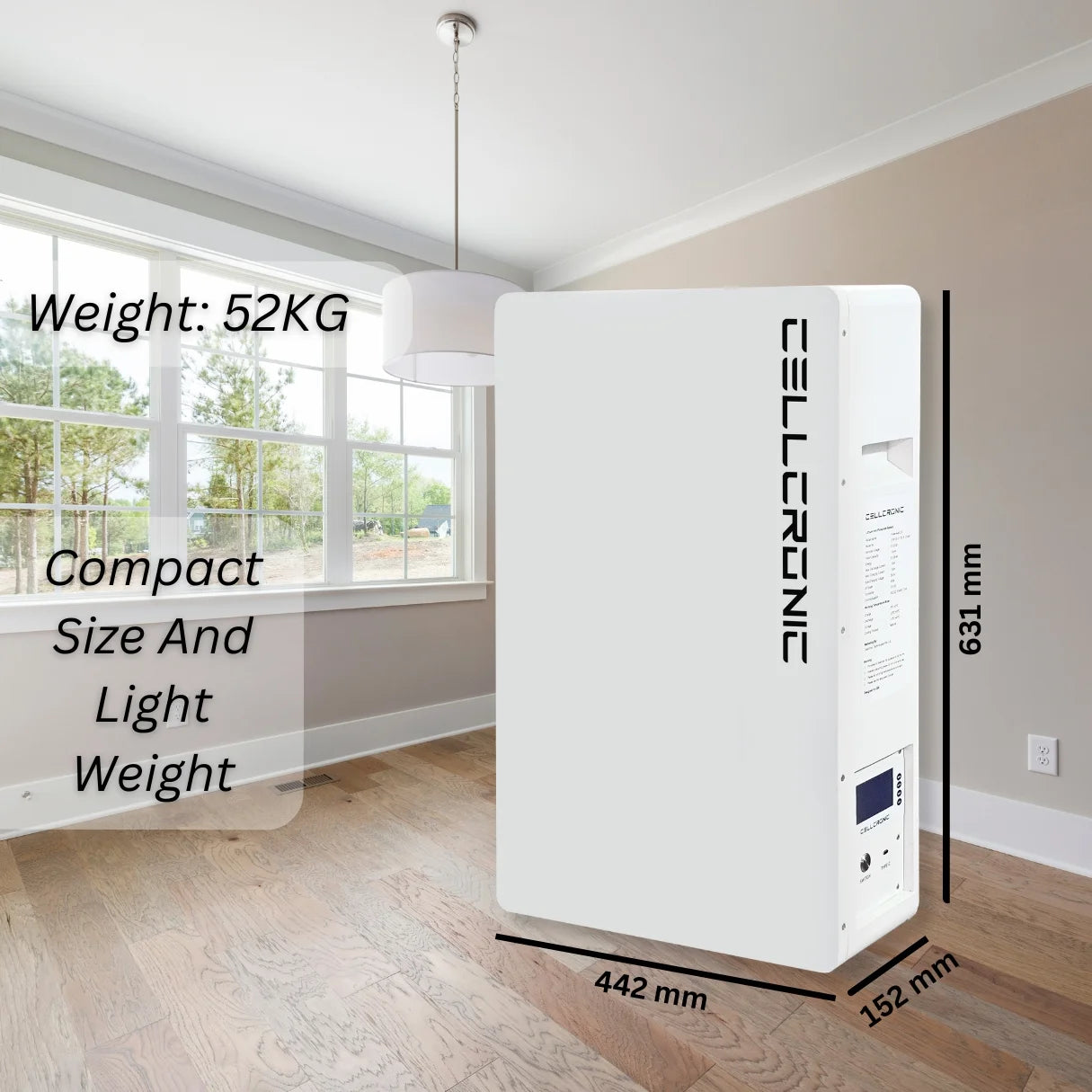

  2. Compact: H631*W442*D152(mm)
  3. Parallel Support: Up to 32pcs
  4. 100AH _5.12kwh Battery Capacity
  5. Warranty: 10 Years
  6. No maintenance, Long Service Life,
  7. Environment Friendly Battery.
  8.  Service Span Up to 45 years.
  9. 6000+ Life cycle at 80% DOD
  10. Good choice for daily power supply





Model                                                                                                                                                          Powerwall 2.0 Plus_100Ah-51.2V-5.12Kwh
                                                                            Electrical Characteristics
Nominal voltage 51.2V
Nominal capacity 100Ah
Energy 5.12Kwh
Cycle Life 6000 Life Cycle at 80% DOD
Months Self ≤3.5% per month at 25℃
Battery Cell 3.2V 100AH, Prismatic, LiFePo4
 Cell compose method  16S1P
                                                                 Standard Charge
Charge Voltage DC 54.8V
Standard Charge 30A
Max. Charge Current 100A
                                                                          Standard Discharge
Max. Continuous Discharge Current 100A
Peak discharge current 125A (For Surge load)
Discharge Cut-off Voltage 42V
                                                               Temperature
Charge Temperature 0℃ to 45℃
Discharge Temperature 20℃ to 60℃
Storage temperature -10°C ~ + 45°C（every month needs to do charge and discharge for one time if storage and no put in use)
Initial Impedance <20mΩ
                                                           General Data
Approx. Weight Approx. 52KG
Dimension (H*W*D)  H631*W442*D152(mm)
Module Parallel Support up to 32pcs parallel
Communication Mode RS485, CAN
Housing Metal
Screen Colorful LCD Screen
Support Inverter brands Deye, Senergy, Sorotec, Voltronic”. (any brand inverter if you need to support)
IP Rating IP54
Protection Over voltage protection (Cell & System), Low voltage protection (Cell & System), High temperature protection, Low temperature protection, Short circuit protection, Over current protection
Warranty 10 Years








Super Prismatic lithium cells


6000+ life cycle at 80% DOD


60 year design life


Support 32 Batteries in parallel Mode


Compatible with Cellcronic, Deye, Voltronic, and most hybrid inverter brands


10 year warranty


Good choice for daily power supply


Environment Friendly, No Maintenance, Light Weight


IP54 Rating Battery
