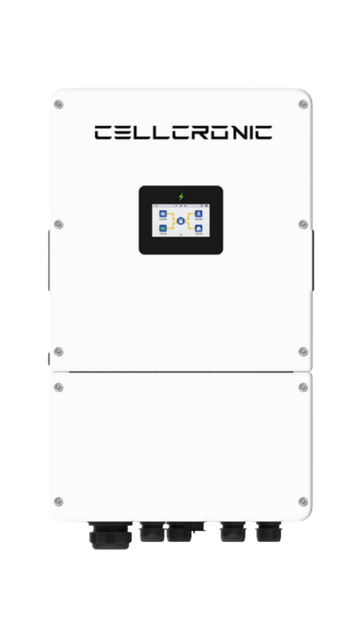

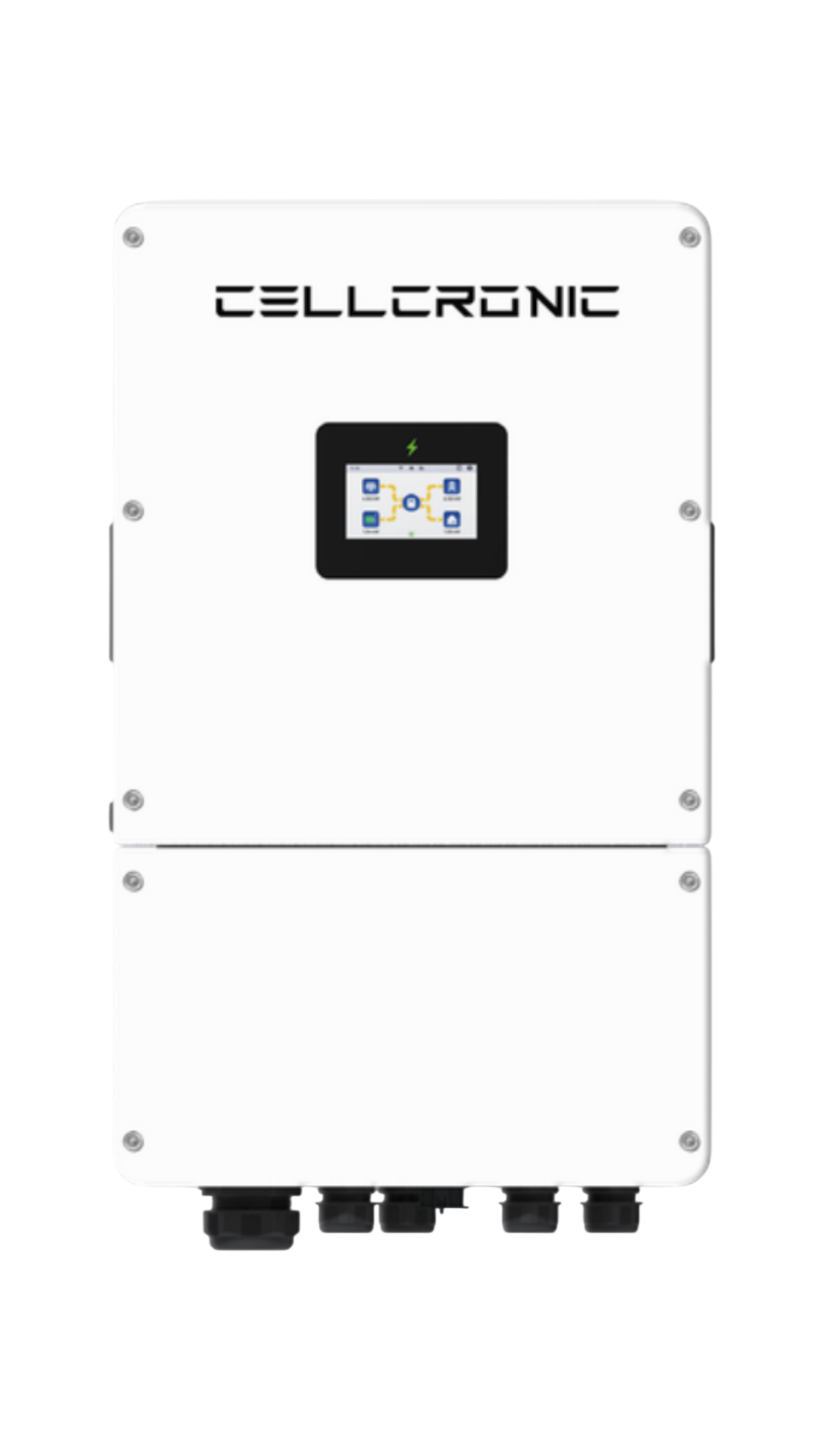

Cellcronic 10K Version Delta Pro 10KW-48V (Single Phase) Hybrid Inverter
Regular price
Rs. 228,571.42
Sale price
Rs. 228,571.42
Regular price
Unit price
Cellcronic 10K Version Delta Pro 10KW-48V (Single Phase) Hybrid Inverter
Regular price
Rs. 228,571.42
Sale price
Rs. 228,571.42
Regular price
Unit price
Product description
Key Specifications & Features
- 10kW Pure Sine Wave Hybrid Inverter
- Supports Lithium & Lead-Acid Batteries
- 15kW Maximum PV Input Power
- 3 MPPT Solar Trackers
- Supports 150% PV Oversizing
- Generator Compatible
- Smart Load Management
- 4.3" Touch LCD Display
- Wi-Fi / GPRS / LAN Monitoring (Optional)
- Supports 12 Units Parallel Operation
- IP65 Protection Rating
-
Wall-Mounted Design
| Specification | Galaxy 10K Delta Pro Hybrid Solar Inverter | |
|---|---|---|
| Model | Galaxy-10K Delta Pro | |
| Rated AC Output Power | 10,000W | |
| Maximum AC Apparent Power | 11,000VA | |
| Nominal Backup Output Power | 10,000W | |
| Nominal Backup Output Current | 43.5A | |
| Peak Backup Power (1s) | 20,000VA | |
| Battery Type | Lithium-Ion / Lead-Acid | |
| Nominal Battery Voltage | 48V | |
| Battery Voltage Range | 40V–64V | |
| Maximum Charge Current | 210A | |
| Maximum Discharge Current | 210A | |
| Maximum Charge/Discharge Power | 10,000W / 10,000W | |
| Maximum PV Input Power | 15,000W | |
| Maximum PV Input Voltage | 600V DC | |
| Start-up Voltage | 90V DC | |
| MPPT Voltage Range | 70V–540V DC | |
| Rated PV Input Voltage | 360V DC | |
| Maximum PV Input Current | 20A + 20A + 20A | |
| Maximum PV Short Circuit Current | 30A + 30A + 30A | |
| MPPT Trackers | 3 | |
| Strings per MPPT | 1 / 1 / 1 | |
| Maximum PV to AC Efficiency | 98.0% | |
| Maximum Battery to AC Efficiency | 94.5% | |
| Grid Voltage | 220V / 230V / 240V (L+N+PE) | |
| Grid Frequency | 50Hz / 60Hz | |
| Grid Frequency Range | 45–55Hz / 55–65Hz (Adjustable) | |
| Grid Type | Single Phase | |
| Transfer Time | <10ms | |
| Power Factor | >0.99 (Adjustable 0.8 Leading to 0.8 Lagging) | |
| Total Harmonic Distortion (THD) | <3% @ Rated Load | |
| Protection Features | DC Switch, Anti-Islanding Protection, AC Over Current Protection, AC Over Voltage Protection, DC Reverse Polarity Protection, Insulation Monitoring, Leakage Current Protection, AFCI Protection | |
| Surge Protection | Type II (DC) / Type II (AC) | |
| Display | 4.3" Color Touch LCD | |
| Communication Interfaces | RS485, CAN (BMS), DRM/RS485 (Meter), Optional Wi-Fi / GPRS / LAN | |
| Cooling Method | Fan Cooling | |
| Operating Temperature | -25°C to +60°C (Derating Above 45°C) | |
| Relative Humidity | 0–100% | |
| Maximum Operating Altitude | 4000m (Derating Above 2000m) | |
| Parallel Operation | Up to 12 Units | |
| Protection Rating | IP65 | |
| Installation | Wall-Mounted | |
| Dimensions (W × H × D) | 420 × 800 × 240 mm | |
| Weight | 39 kg | |
| Safety Standards | EN IEC 62109-1, EN IEC 62109-2, EN IEC 61000 | |
| Warranty | 5 Years |
