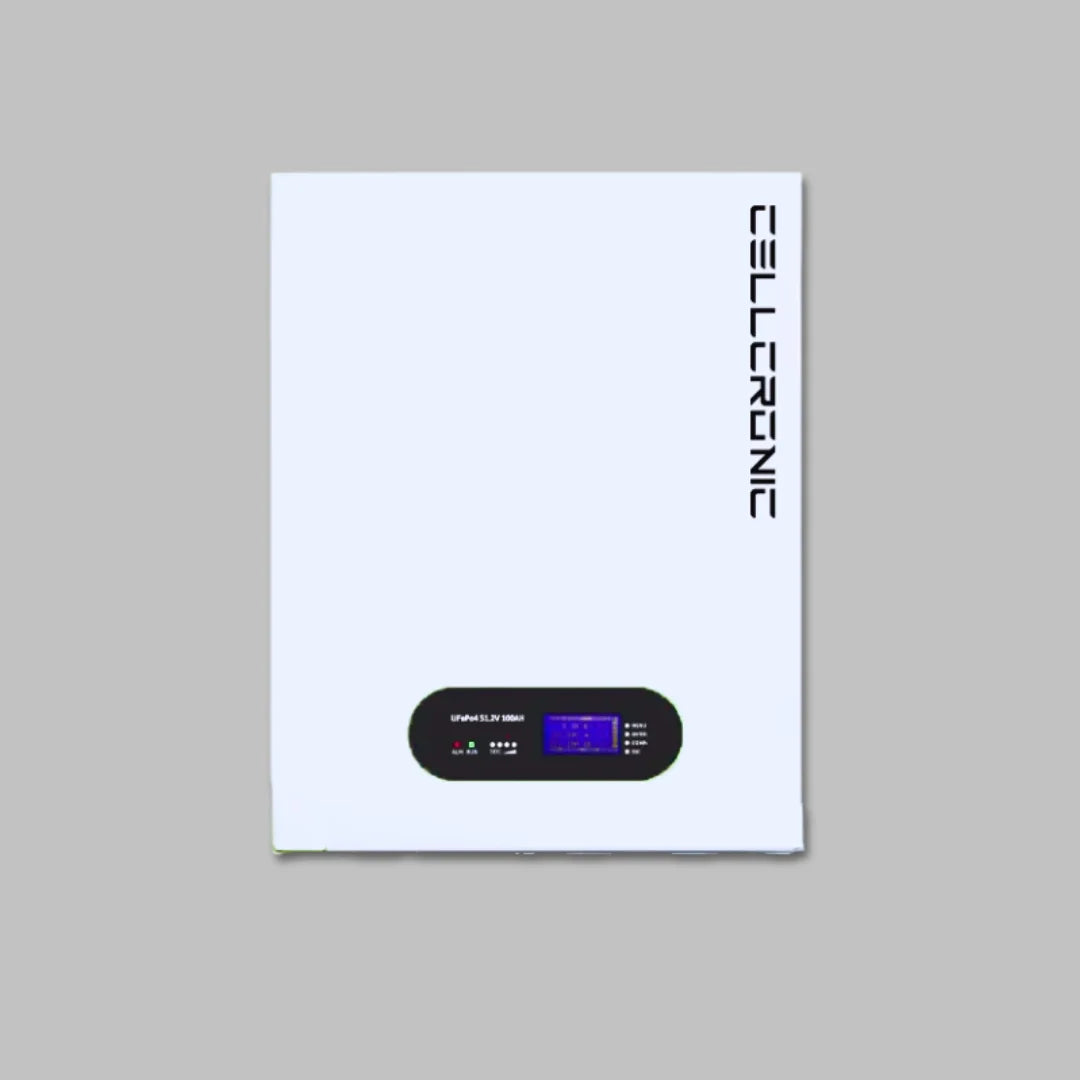

Cellcronic Powerwall 3.0 ECO – 51.2V 200Ah 10.24 kWh LiFePO4 Battery
Regular price
Rs. 245,762.71
Sale price
Rs. 245,762.71
Regular price
Unit price
Cellcronic Powerwall 3.0 ECO – 51.2V 200Ah 10.24 kWh LiFePO4 Battery
Regular price
Rs. 245,762.71
Sale price
Rs. 245,762.71
Regular price
Unit price
Product description
Key Specifications & Features
- Lightweight: 95KG

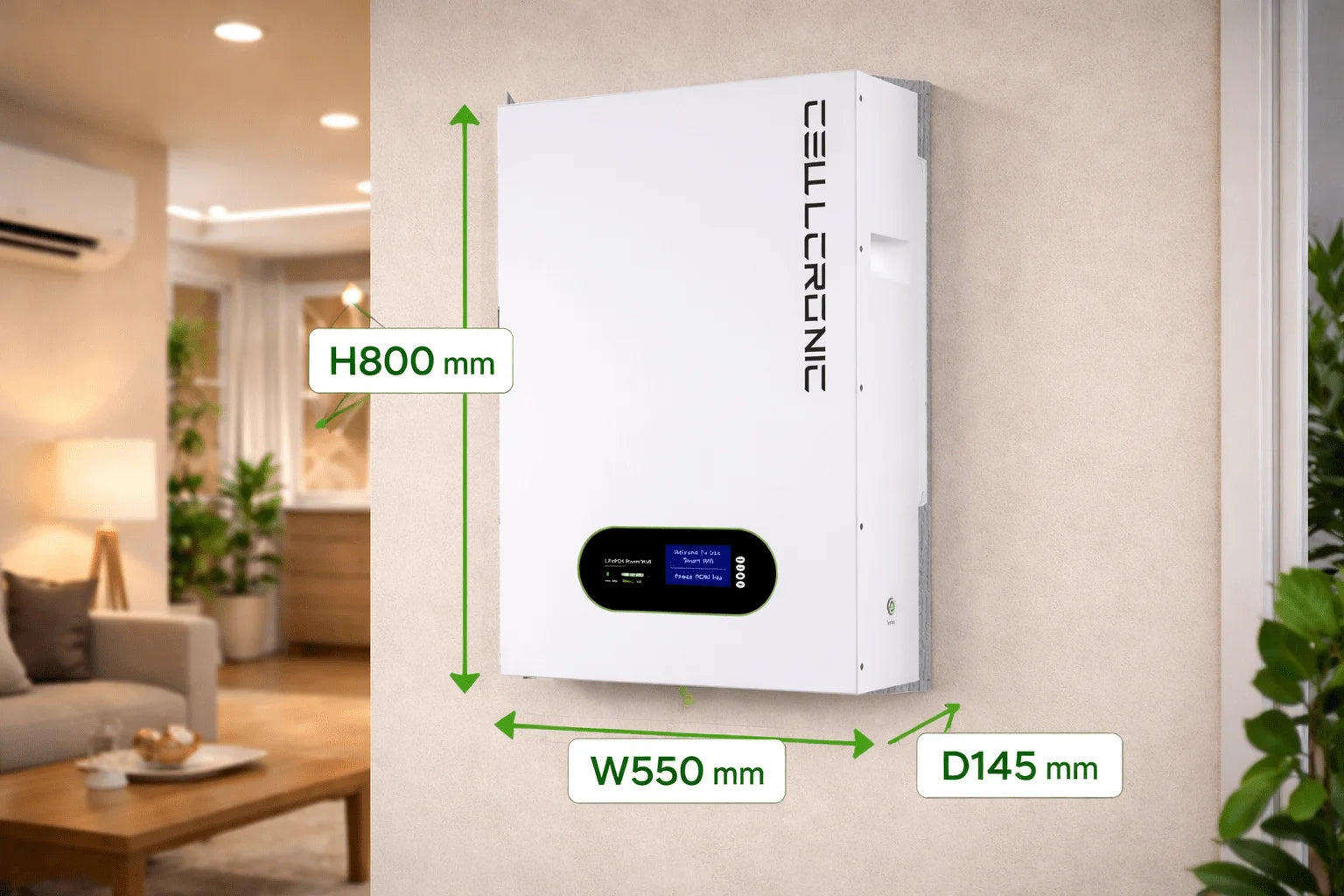

- Compact: H800*W550*D145(mm)
- Parallel Support: Up to 16pcs
- 200AH Battery Capacity
- Warranty: 5 Years
- No maintenance, Long Service Life,
- Environment Friendly Battery.
- Service Span Up to 45 years.
- 6000+ Life cycle at 80% DOD
- Good choice for daily power supply.
| Specification | Powerwall 3.0 ECO 10.24kWh 200Ah LiFePO₄ Battery | |
|---|---|---|
| Model | Powerwall 3.0 (ECO) – 200Ah / 51.2V / 10.24kWh | |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) | |
| Cell Type | 3.2V 200Ah Prismatic Cells | |
| Cell Configuration | 16S2P | |
| Nominal Voltage | 51.2V | |
| Nominal Capacity | 200Ah | |
| Battery Energy | 10.24kWh | |
| Cycle Life | 6000+ Cycles @ 80% DOD | |
| Charge Voltage | 58.4V | |
| Discharge Cut-off Voltage | 41.6V | |
| Standard Charge Current | 60A | |
| Standard Discharge Current | 100A | |
| Maximum Continuous Charge Current | 60A | |
| Maximum Continuous Discharge Current | 200A | |
| Charge Temperature | 0°C to 55°C | |
| Discharge Temperature | -20°C to 60°C | |
| Storage Temperature | 10°C to 45°C | |
| Self-Discharge | ≤3.5% per Month @ 25°C | |
| Initial Impedance | <22mΩ | |
| Battery Management System (BMS) | Smart 200A BMS | |
| Parallel Support | Up to 16 Batteries | |
| Communication Protocols | RS232 / RS485 / CAN / Bluetooth / Wi-Fi | |
| Display | Color LCD Screen | |
| Cooling Method | Natural Cooling | |
| Protection Rating | IP52 | |
| Housing Material | Metal | |
| Compatible Inverters | Deye, Senergy, Sorotec, Voltronic (Others on Request) | |
| Protection Features | Over Voltage, Low Voltage, High Temperature, Low Temperature, Short Circuit & Over Current Protection | |
| Dimensions (H × W × D) | 800 × 550 × 145 mm | |
| Weight | Approx. 95 kg | |
| Warranty |
5 Years |
