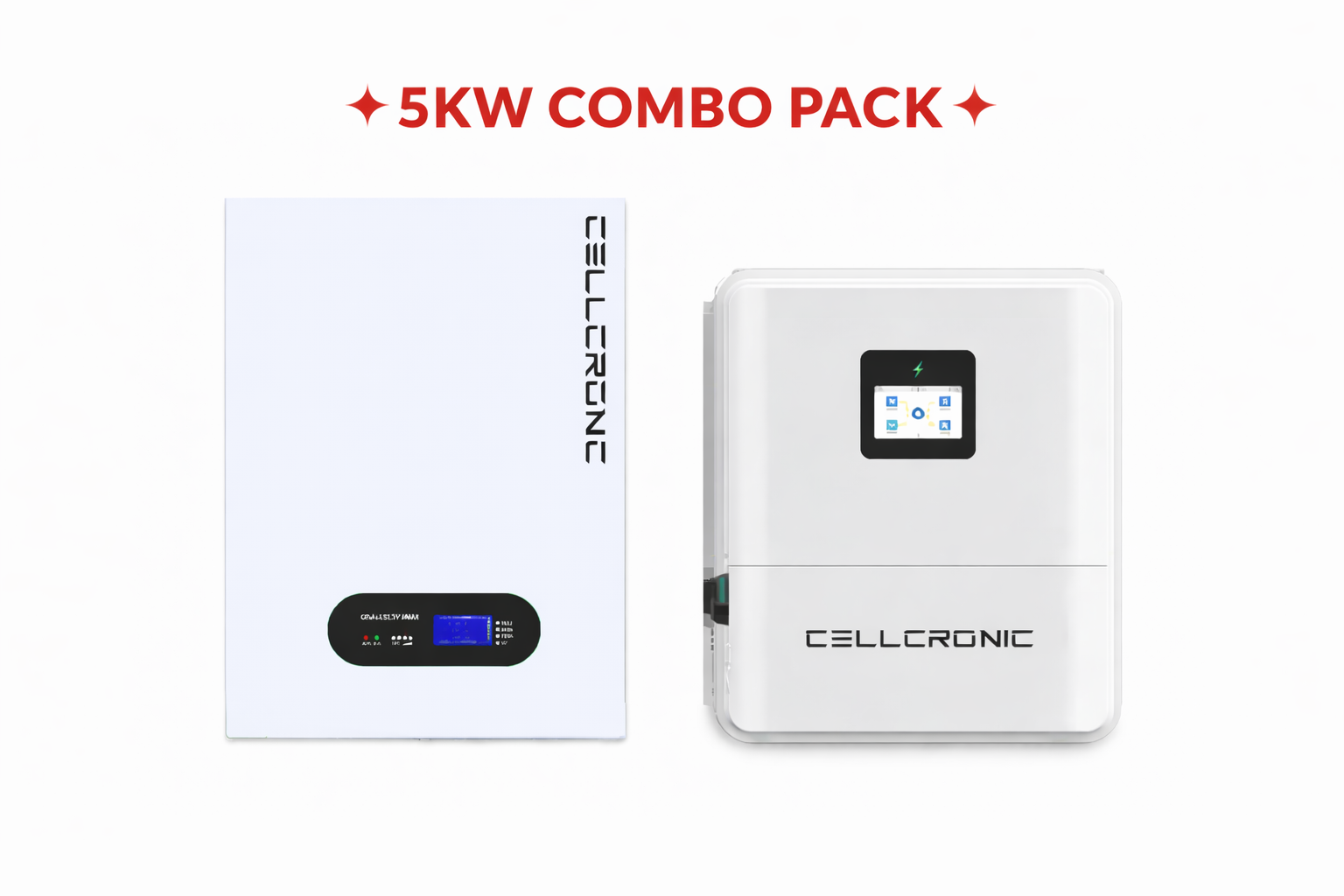

(COMBO) Cellcronic-5K Version Delta Pro 5KW + Powerwall 2.0 ECO 100Ah-51.2V-5.12Kwh
Regular price
Rs. 209,523.80
Sale price
Rs. 209,523.80
Regular price
Unit price
(COMBO) Cellcronic-5K Version Delta Pro 5KW + Powerwall 2.0 ECO 100Ah-51.2V-5.12Kwh
Regular price
Rs. 209,523.80
Sale price
Rs. 209,523.80
Regular price
Unit price
Product description
Key Specifications & Features Inverter
- AC couple to retrofit existing solar system
- Works as On- grid and Off- Grid mode
- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 70V-540VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 16kg
- Inverter Dimension 367mm*421mm*215mm
- 25 years design life
| Model Galaxy-5K Version-Delta Pro Dual MPPT Hybrid Inverter | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 40~60V | |
| Max. Charging Current (A) | 135A | |
| Max. Discharging Current (A) | 135A | |
| Charging Curve | 3 Stages / Equalization | |
| External Temperature Sensor | Optional | |
| Charging Strategy for Li–ion Battery | Self-adaption to BMS | |
| PV STRING INPUT DATA | ||
| Max. DC Input Power(W) | 10,000W | |
| Max PV Input Voltage (V） | 500V | |
| Start-up Voltage （V） | 90V | |
| MPPT Voltage Range （V） | 70V-540V | |
| Rated PV Input Voltage(V) | 370V | |
| Max. PV Input Current (A) | 18A+18A | |
| Max. Short-Circuit Current (A) | 25A+25A | |
| No. of MPPT Trackers | 2 | |
| No. of Strings Per MPPT Tracker | 1+1 | |
| AC INPUT/OUTPUT DATA | ||
| Rated AC Input /Output Active Power （W） | 5000W | |
| Max AC Input /Output Apparent Power （VA） | 6600W | |
| Peak Power (off-grid) (W) | 2 times of rated power, 10S | |
| Rated AC Input / Output Current(A) | 22.8/21.8 | |
| Max AC Input / Output Current (A) | 28.7 | |
| Max. Input Power From Grid | 9,000W | |
| Max. Continuous AC Passthrough(A) | 41A | |
| Power Factor Adjustment Range | > 0.99 @rated power (Adjustable 0.8 LD – 0.8 LG) | |
| Grid Voltage Range | 150V-300V (Adjustable) | |
| Rated Input /Output Grid Frequency/Range(Hz) | 45Hz-55Hz/55Hz-65Hz (Adjustable) | |
| Rated Grid Voltage (V) | 220V/230 0.85Un-1.1Un | |
| Grid Type | Single Phase | |
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |
| EFFICIENCY | ||
| Max. Efficiency | 97.30% | |
| Euro Efficiency | 96.80% | |
| MPPT Efficiency | 99.90% | |
| PROTECTION | ||
| DC Polarity Reverse Connection Protection | Integrated | |
| AC Output Overcurrent Protection | Integrated | |
| Thermal Protection | Integrated | |
| AC Output Overvoltage Protection | Integrated | |
| AC Output Short Circuit Protection | Integrated | |
| DC Component Monitoring | Integrated | |
| Overvoltage Load Drop Protection | Integrated | |
| Island Protection Monitoring, Earth Fault Detection | Integrated | |
| DC Input Switch | Integrated | |
| DC Terminal Insulation Impedance Monitoring | Integrated | |
| Residual Current (RCD) Detection | Integrated | |
| Surge Protection | DC Type ll / AC Type ll | |
| CERTIFICATION AND STANDARDS | ||
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105 | |
| Safety Regulation | IEC/EN 61000-6-1/2/3/4, | |
| Safety EMC/Standard | IEC/EN 62109-1, IEC/EN 62109-2 | |
| GENERAL DATA | ||
| Operating Temperature Range(°C) | -25 to +60℃, >45℃ Derating | |
| Cooling | Natural Cooling | |
| Noise (db.) | <30 db. | |
| Communication with BMS | RS485; CAN | |
| Weight (kg) | 16 Kg | |
| Size (W*H*D GLmm) | 367mm*421mm*215mm | |
| Protection Degree | IP65 | |
| Installation Style | Well-mounted | |
| Warranty | 2 Years Standard Warranty Expendable up to 5 Years | |
Key Specifications & Features Battery
- Lightweight: 53 KG
- Compact: H615*W420*D145(mm)
- Parallel Support: Up to 16pcs
- 100AH 5.12kwh Battery Capacity
- Warranty: 5 Years
- No maintenance, Long Service Life,
- Environment Friendly Battery.
- Service Span Up to 60 years.
- 6000+ Life cycle at 80% DOD
- Good choice for daily power supply
| Model Powerwall 2.0 ECO_100Ah-51.2V-5.12Kwh | ||
| Electrical Characteristics | ||
| Nominal voltage | 51.2V | |
| Nominal capacity | 100Ah | |
| Energy | 5.12Kwh | |
| Cycle Life | 6000 Life Cycle at 80% DOD | |
| Months Self | ≤3.5% per month at 25℃ | |
| Battery Cell | 3.2V 100AH, Prismatic, LiFePo4 | |
| Cell compose method | 16S1P | |
| Charge & Discharge | ||
| Charge Voltage | DC 54.8V | |
| Discharge Cut-off Voltage | 40 A | |
| Standard Charge Current | 20 A | |
| Standard Discharge Current | 50 A | |
| Max. Continuous Charge Current | 100 A | |
| Max. Continuous Discharge Current | 100 A | |
| Temperature | ||
| Charge Temperature | 0 ~ 45°C（32 ~ 113°F) | |
| Discharge Temperature | -20 ~ 55°C（-4 ~ 131°F） | |
| Storage temperature | -10 ~ 45°C（14 ~ 113°F） | |
| Initial Impedance | <20mΩ | |
| General Data | ||
| Approx. Weight | Approx. 53KG | |
| Dimension (H*W*D) | H615*W420*D145(mm) | |
| Module Parallel | Support up to 16pcs parallel | |
| Communication Mode | RS232 / RS485 / CAN | |
| Housing | Metal | |
| Screen | Colorful LCD Screen | |
| Cooling Method | Natural Cooling | |
| Support Inverter brands | Deye, Senergy, Sorotec, Voltronic”. (any brand inverter if you need to support) | |
| IP Rating | IP54 | |
| Protection | Over voltage protection (Cell & System), Low voltage protection (Cell & System), High temperature protection, Low temperature protection, Short circuit protection, Over current protection | |
| Warranty | 5 Years | |
