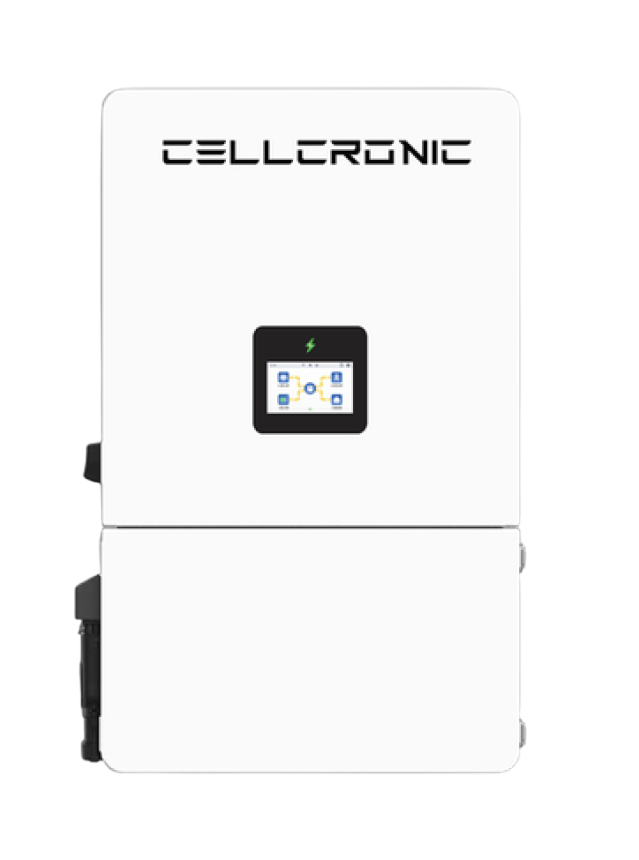

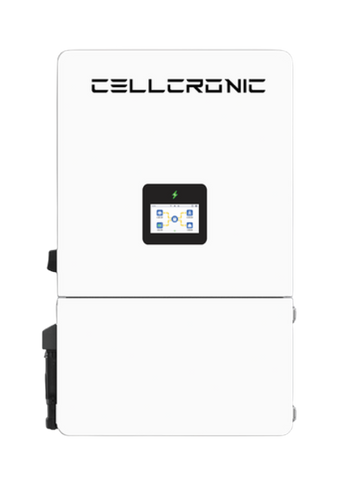

Cellcronic 15K Version Delta Pro 15KW-48V (Three Phase) Hybrid Inverter
Regular price
Rs. 323,809.52
Sale price
Rs. 323,809.52
Regular price
Unit price
Cellcronic 15K Version Delta Pro 15KW-48V (Three Phase) Hybrid Inverter
Regular price
Rs. 323,809.52
Sale price
Rs. 323,809.52
Regular price
Unit price
Product description
Key Specifications & Features
- 15kW Three-Phase Hybrid Inverter
- 48V Battery System
- Supports Lithium & Lead-Acid Batteries
- 40kW Maximum PV Input Power
- 3 MPPT Solar Trackers
- Smart Load Management
- Generator Compatible
- 4.3" LCD Touch Display
- Wi-Fi / GPRS / LAN Monitoring (Optional)
- Supports 9 Units Parallel Operation
- IP65 Protection Rating
- Smart Cooling
- Wall-Mounted Design
| Specification | Galaxy 15K Delta Pro Three-Phase Hybrid Solar Inverter | |
|---|---|---|
| Model | Galaxy-15K Delta Pro | |
| Rated AC Output Power | 15,000W | |
| Maximum AC Apparent Power | 16,500VA | |
| Nominal Backup Output Power | 15,000W | |
| Nominal Backup Output Current | 3 × 22.7A / 3 × 21.7A / 3 × 20.8A | |
| Maximum AC Output Current | 3 × 25A | |
| Peak Backup Power | 200% @ 10 Seconds | |
| Battery Type | Lithium-Ion / Lead-Acid | |
| Number of Battery Inputs | 2* | |
| Nominal Battery Voltage | 48V | |
| Battery Voltage Range | 40V–60V | |
| Maximum Charge Current | 380A | |
| Maximum Discharge Current | 300A | |
| Maximum Charge/Discharge Power | 20,000W / 14,500W | |
| Maximum PV Input Power | 40,000W | |
| Maximum PV Input Voltage | 1000V DC | |
| Start-up Voltage | 120V DC | |
| MPPT Voltage Range | 160V–980V DC | |
| Maximum PV Input Current | 20A / 20A / 20A | |
| Maximum PV Short Circuit Current | 30A / 30A / 30A | |
| MPPT Trackers | 3 | |
| Strings per MPPT | 1 / 1 / 1 | |
| Maximum PV to AC Efficiency | 97.60% | |
| Maximum Battery to AC Efficiency | 97.00% | |
| Grid Type | Three Phase | |
| Nominal Grid Voltage | 220/380V, 230/400V, 240/415V (3W+N+PE) | |
| Grid Frequency | 50Hz / 60Hz | |
| Grid Frequency Range | 45–55Hz / 55–65Hz (Adjustable) | |
| Maximum Grid Passthrough Current | 45A | |
| Power Factor | >0.99 (Adjustable 0.8 Leading to 0.8 Lagging) | |
| Transfer Time | <10ms | |
| Total Harmonic Distortion (THD) | <3% @ Rated Load | |
| Maximum Generator Input Power | 30,000W | |
| Protection Features | PV Switch, Anti-Islanding, Overcurrent Protection, PV Reverse Polarity Protection, Overvoltage Protection, Insulation Resistance Detection, Residual Current Protection | |
| Surge Protection | Type II (DC) / Type II (AC) | |
| Display | 4.3" Color Touch LCD | |
| Communication Interfaces | RS485, CAN (BMS), DRM/RS485 (Meter), Optional Wi-Fi / GPRS / LAN | |
| Cooling Method | Smart Cooling | |
| Operating Temperature | -25°C to +60°C (Derating Above 45°C) | |
| Relative Humidity | 0–100% | |
| Maximum Operating Altitude | 4000m (Derating Above 2000m) | |
| Parallel Operation | Up to 9 Units | |
| Protection Rating | IP65 | |
| Installation | Wall-Mounted | |
| Dimensions (W × H × D) | 460 × 742 × 266 mm | |
| Weight | 50 kg | |
| Safety Standards | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 | |
| Warranty | 5 Years |
