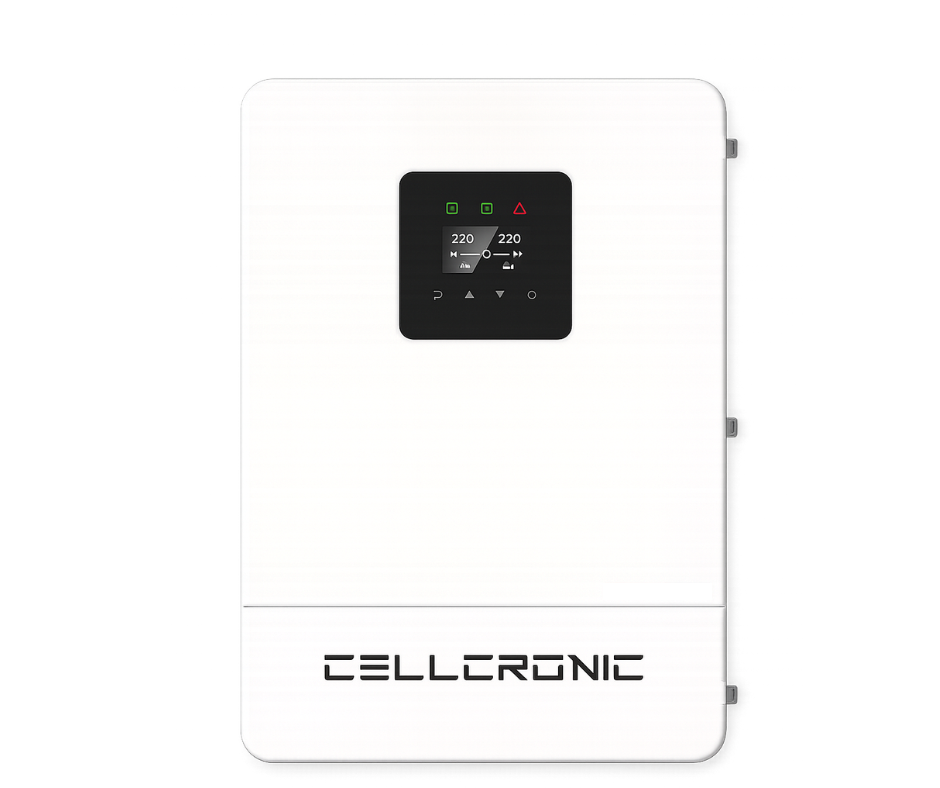

Cellcronic Neo Pro 4KW-24V Single MPPT Hybrid Inverter
Regular price
Rs. 64,761.90
Sale price
Rs. 64,761.90
Regular price
Unit price
Cellcronic Neo Pro 4KW-24V Single MPPT Hybrid Inverter
Regular price
Rs. 64,761.90
Sale price
Rs. 64,761.90
Regular price
Unit price
Product description
Key Specifications & Features
- 4kW (4000W) Pure Sine Wave Hybrid Solar Inverter
- Designed on 24V DC Battery System
- Compatible with Lead-Acid & Lithium-Ion Batteries
- IP54 Protection Rating
- Intelligent Smart Cooling System
- Supports Parallel Operation up to 12 Units
- Wall-Mounted Design
- 5-Year Warranty
| Specification | Neo Pro 4K Hybrid Solar Inverter | |
|---|---|---|
| Model | Neo Pro-4K Hybrid Solar Inverter | |
| Rated AC Input/Output Power | 4000W | |
| Maximum AC Input/Output Power | 4000W | |
| Rated AC Input/Output Current | 17.3A | |
| Maximum AC Input/Output Current | 17.3A | |
| Maximum Continuous AC Passthrough | 35A | |
| Peak Power (Off-Grid) | 200% @ 5.5 Seconds | |
| Power Factor | 0.8 Leading to 0.8 Lagging | |
| Nominal Output Voltage | 220V / 230V / 240V | |
| Grid Voltage Range | 170V–280V (UPS), 90V–280V (Home Appliances) | |
| Nominal Frequency | 50Hz / 60Hz | |
| Transfer Time | 10ms (UPS), 20ms (Home Appliances), 50ms (Parallel Operation) | |
| Grid Type | Single Phase | |
| Battery Type | Lead-Acid / Lithium-Ion | |
| Battery Voltage Range | 20–30V DC | |
| Maximum Charging Current | 140A | |
| Maximum Discharging Current | 140A | |
| Charging Strategy | Self-adaption to BMS | |
| Maximum DC Input Power | 6000W | |
| Maximum PV Input Voltage | 500V DC | |
| Start-up Voltage | 60V DC | |
| MPPT Voltage Range | 60V–450V DC | |
| Rated PV Input Voltage | 370V DC | |
| Maximum PV Input Current | 25A | |
| Number of MPPT Trackers | 1 | |
| Strings per MPPT | 1 | |
| Maximum Efficiency | 96.5% | |
| Euro Efficiency | 95.6% | |
| MPPT Efficiency | >99% | |
| Total Harmonic Distortion (THD) | <3% (Linear Load <1.5%) | |
| DC Current Injection | <0.5% In | |
| Protection Features | Overload Protection, AC Output Overcurrent Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Ground Fault Current Monitoring, Power Network Monitoring, DC Input Switch, Overvoltage Protection, Load Drop Protection, Over Temperature Protection | |
| Surge Protection | Type III (DC), Type III (AC) | |
| Communication Ports | USB (OTG), RJ45 (BMS/CAN/RS485), RS485, RS232, CAN, Dry Contact | |
| Display | LED + LCD | |
| Monitoring Options | Wi-Fi / GPRS / 4G / LAN (Optional) | |
| Operating Temperature | -10°C to +55°C (Derating Above 45°C) | |
| Humidity | 5%–95% RH | |
| Maximum Operating Altitude | 4000m (Derating Above 2000m) | |
| Cooling Method | Smart Cooling | |
| Noise Level | <30 dB | |
| Parallel Capacity | Up to 12 Units | |
| Weight | 10.75 kg | |
| Dimensions (W × H × D) | 347 × 445 × 120 mm | |
| Protection Rating | IP54 | |
| Installation | Wall-Mounted | |
| Inverter Topology | Non-Isolated | |
| Over Voltage Category | OVC II (DC), OVC III (AC) | |
| Grid Standards | EN/IEC 62109-1, EN/IEC 62109-2, EN/IEC 61000 | |
| Warranty | 5 Years | |
