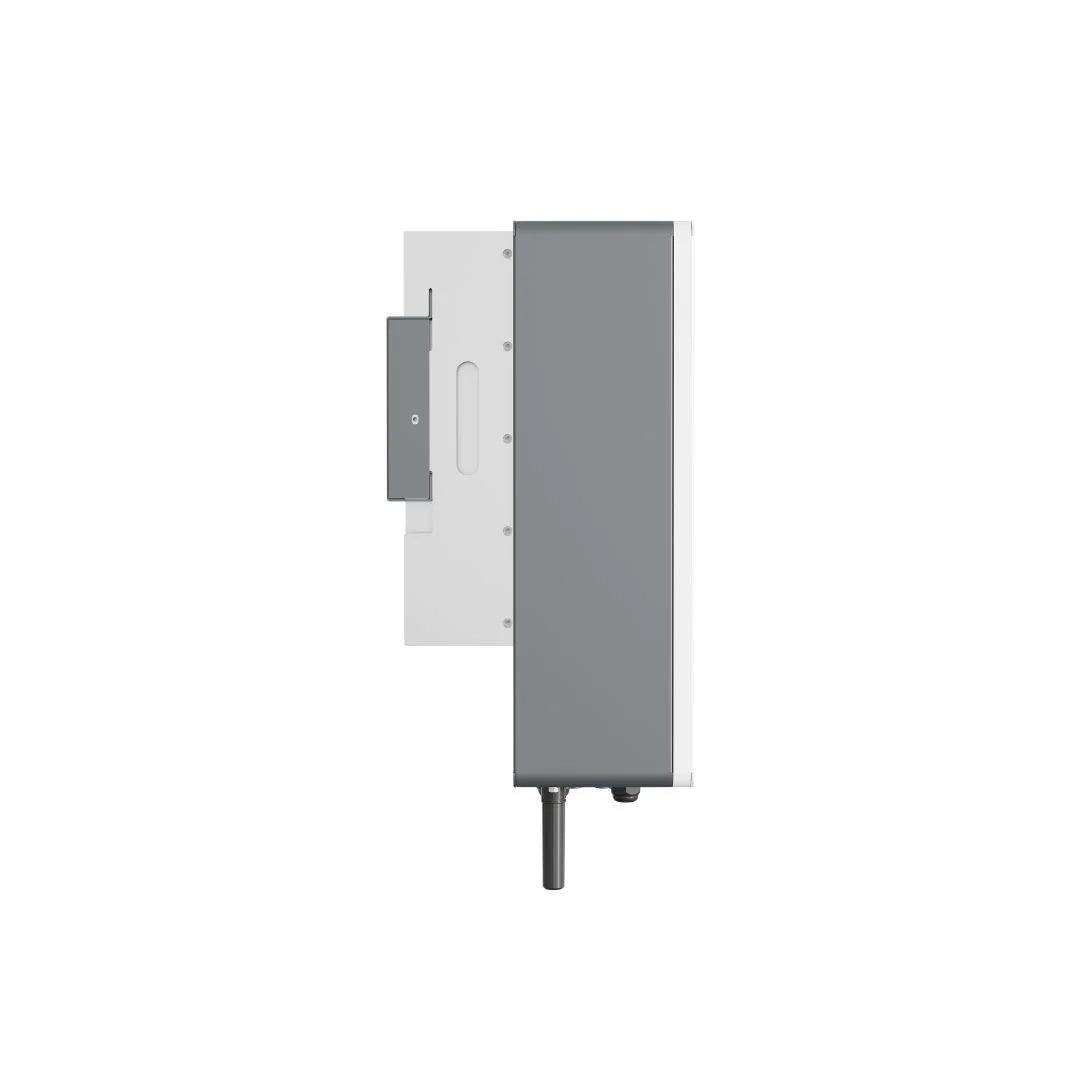

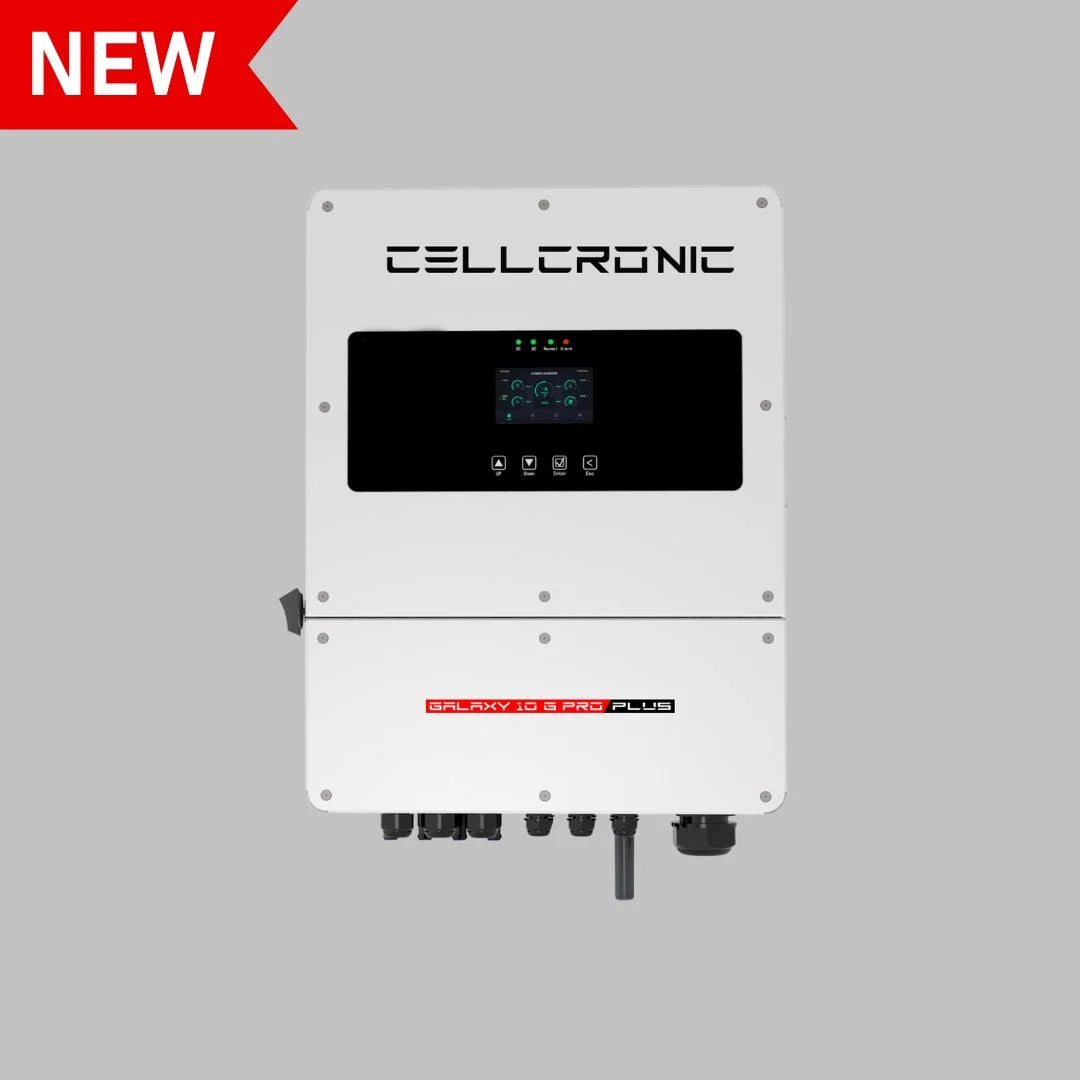

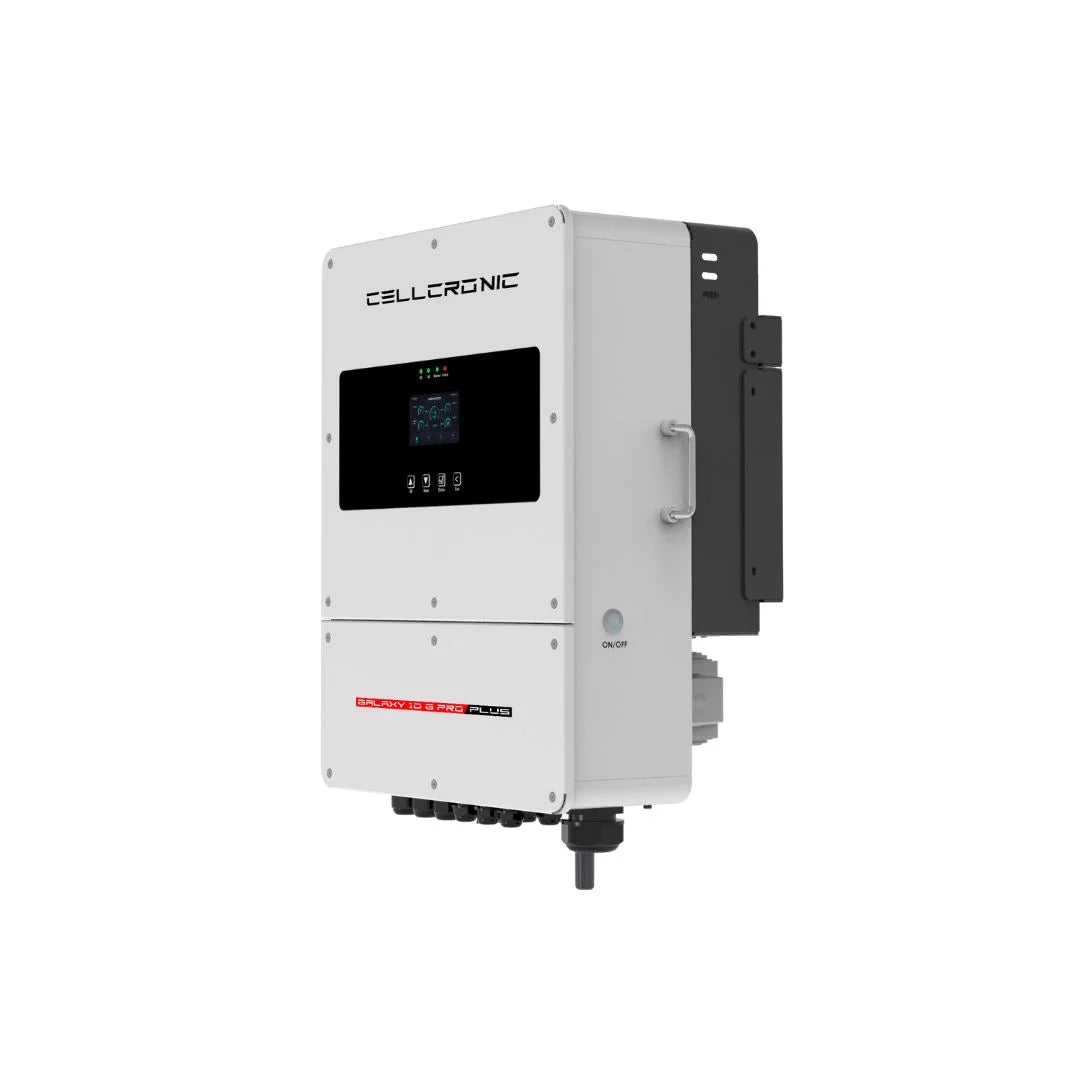

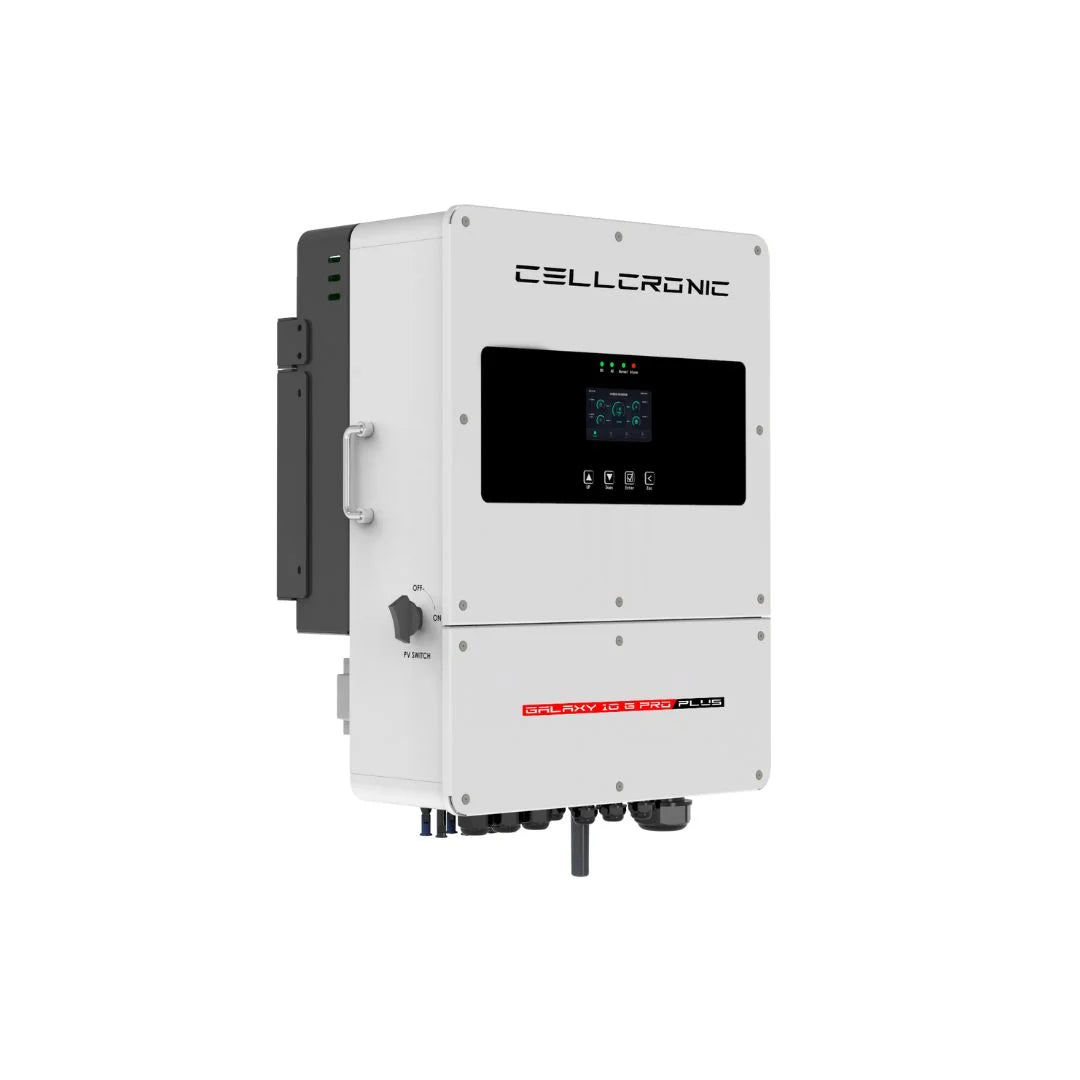

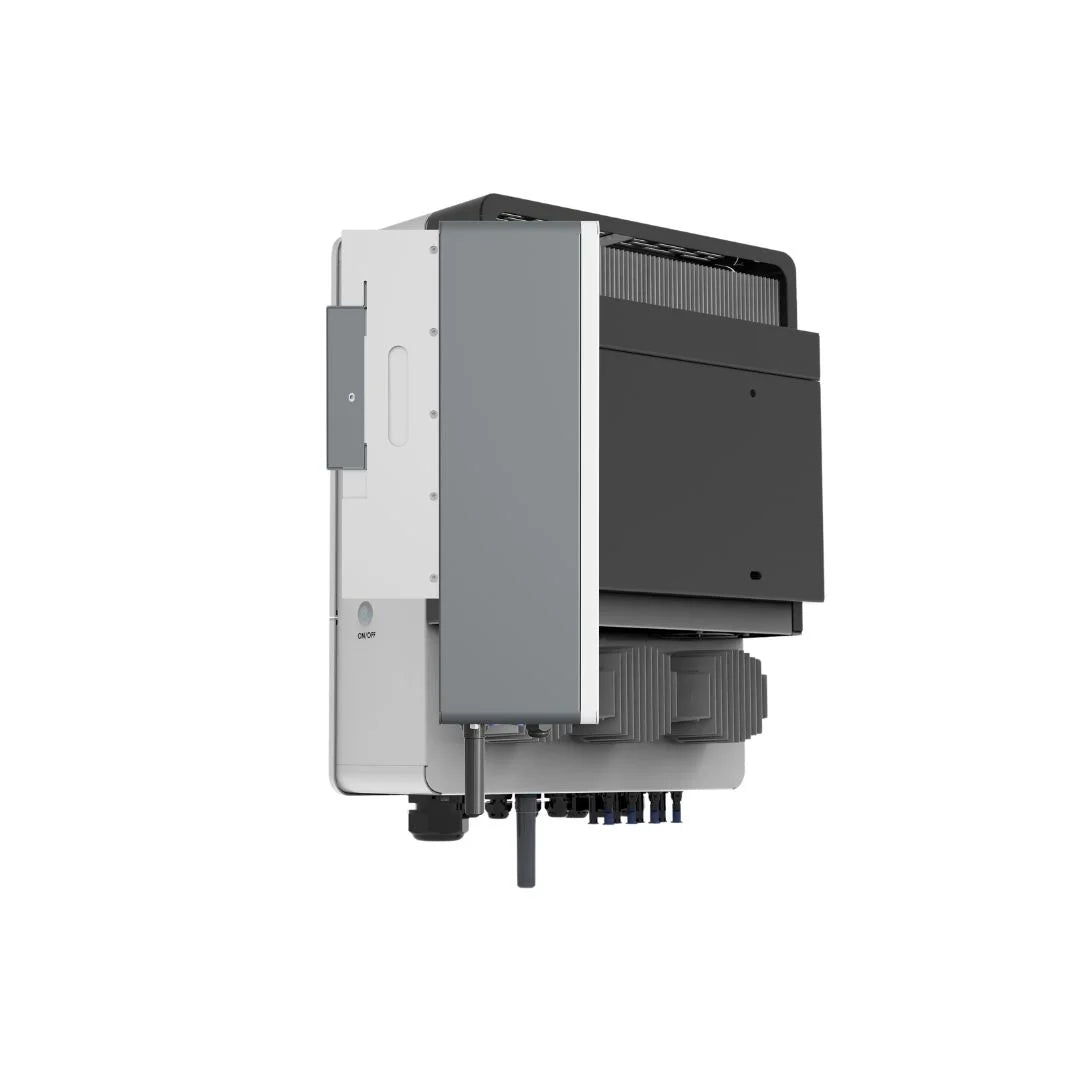

Cellcronic Galaxy-8K-HY-Version-10G-Pro Plus Hybrid Solar Inverter
Regular price
Rs. 171,427.62
Sale price
Rs. 171,427.62
Regular price
Unit price
Cellcronic Galaxy-8K-HY-Version-10G-Pro Plus Hybrid Solar Inverter
Regular price
Rs. 171,427.62
Sale price
Rs. 171,427.62
Regular price
Unit price
Product description
Key Specifications & Features
- Heavy Duty Hybrid inverter launch in India
- A 8kw model can run 6 AC with home load
- Inverters come with <5ms Switching time
- 20 Inverters can parallel with different capacity inverters
- Neutral to Ground earthing relay introduced for off-grid operation
- 9 time of use function introduced for battery Charging/Discharging
- Function arrive to change Solar Voltage and Ampere acceptance in inverter solar input.
- can set AC charging percentage different from whole charging percentage to save bill
- DC to DC converter introduce in Inverter to charge battery separately from extra solar DC power.
- A new Soft Start function introduce to start the heavy motor without Jerks.
| Model Galaxy-5K-HY-Version-10G-Pro Plus Hybrid Solar Inverter | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 40~60V | |
| Max. Charging Current (A) | 190A | |
| Max. Discharging Current (A) | 190A | |
| Number of Battery Input | 1 | |
| External Temperature Sensor | Optional | |
| Charging Strategy for Li–ion Battery | Self-adaption to BMS | |
| PV STRING INPUT DATA | ||
| Max. DC Input Power(W) | 13,000W | |
| Max PV Input Voltage (V） | 500V | |
| Start-up Voltage（V） | 120V | |
| MPPT Voltage Range（V） | 150V-500V | |
| Max. PV Input Current (A) | 26A+26A | |
| Max. Short-Circuit Current (A) | 34A+34A | |
| No. of MPPT Trackers | 2 | |
| No. of Strings Per MPPT Tracker | 2+2 | |
| AC INPUT/OUTPUT DATA | ||
| Rated AC Input/Output Active Power（W） | 8000W | |
| Max. AC Input/Output Apparent Power (VA) | 9600W | |
| Peak Power (off-grid) (W) | 2 times of rated power, 10S | |
| Rated AC Input/Output Current(A) | 34.78A | |
| Max AC Input/Output Current（A) | 41.73A | |
| Max. Input Power From Grid | 12000W | |
| Max. Continuous AC Passthrough(A) | 50A | |
| Power Factor Adjustment Range | > 0.99 @rated power (Adjustable 0.8 LD – 0.8 LG) | |
| Grid Connection Form | L+N+PE | |
| Rated Input/Output Grid Frequency/Range(Hz) | 45Hz-55Hz/55Hz-65Hz (Adjustable) | |
| Rated Grid Voltage (V) | 220V/230 0.85Un-1.1Un | |
| Grid Type | Single Phase | |
| Current Harmonic Distortion | THD<3%(Linear load <1.5%) | |
| EFFICIENCY | ||
| Max. Efficiency (PV to AC) | 97.9% | |
| Euro Efficiency (PV to AC) | 97.0% | |
| MPPT Efficiency | 99.0% | |
| PROTECTION | ||
| PV Input Lightning Protection | Integrated | |
| Anti-islanding Protection | Integrated | |
| PV String Input Reverse Polarity Protection | Integrated | |
| Insulation Resistor Detection | Integrated | |
| Residual Current Monitoring Unit | Integrated | |
| Output Over Current Protection | Integrated | |
| Output Shorted Protection | Integrated | |
| Surge Protection | TYPE II(DC), TYPE II(AC) | |
| CERTIFICATION AND STANDARDS | ||
| Grid Regulation | CEI 0-21,VDE-AR-N 4105,NRS 097,IEC61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11 | |
| Safety/ EMC Standard | IEC/ED 62109-1 IEC/EN 62109-2,IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 | |
| GENERAL DATA | ||
| Operating Temperature Range(°C) | -45~60,＞45 Derating | |
| Relative Humidity | 0-100% | |
| Max. Operation Altitude | 4000m (>2000m derating) | |
| Inverter Topology | Non-Isolated | |
| Type of Cooling | Smart Cooling | |
| Noise(db) | <40 db | |
| Communication with BMS | RS485; CAN | |
| Weight (kg) | 34/35 Kg | |
| Cabinet Size (WxHxD mm) | G1: 514W×749H×291D/G2: 514W×665H×292D | |
| Protection Degree | IP65 | |
| Installation Style | Wall-Mounted | |
| Warranty | 5 Years Standard & up to 5 Years expendable | |
Colorful Touch LCD, IP65 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
9600W Maximum Load Capacity & 13000W Maximum Solar Capacity.
9 time period for battery Charging/ discharging.
Max. Charging/discharging current of 190A
Support max. 20 units paralleled and three-phase application.
5 year warranty and can be expendable up to 5 year.
