Cellcronic Powerwall 2.0 ECO 100Ah-51.2V-5.12Kwh LiFePo4 Battery

Regular price Rs. 105,931.36
Sale price Rs. 105,931.36 Regular price
Unit price
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share
Cellcronic Powerwall 2.0 ECO 100Ah-51.2V-5.12Kwh LiFePo4 Battery

Cellcronic Powerwall 2.0 ECO 100Ah-51.2V-5.12Kwh LiFePo4 Battery

Regular price Rs. 105,931.36
Sale price Rs. 105,931.36 Regular price
Unit price
Product description

Super Prismatic lithium cells


6000+ life cycle at 80% DOD


60 year design life


Support 16 Batteries in parallel Mode


Compatible with Cellcronic, Deye, Voltronic, and most hybrid inverter brands


5 year warranty


Good choice for daily power supply


Environment Friendly, No Maintenance, Light Weight


IP54 Rating Battery





Key Specifications & Features

  1. Lightweight: 53 KG
  2. Compact: H615*W420*D145(mm)
  3. Parallel Support: Up to 16pcs
  4. 100AH _5.12kwh Battery Capacity
  5. Warranty: 5 Years
  6. No maintenance, Long Service Life,
  7. Environment Friendly Battery.
  8.  Service Span Up to 60 years.
  9. 6000+ Life cycle at 80% DOD
  10. Good choice for daily power supply
Model                                                                                                                                                           Powerwall 2.0 ECO_100Ah-51.2V-5.12Kwh
                                                                            Electrical Characteristics
Nominal voltage 51.2V
Nominal capacity 100Ah
Energy 5.12Kwh
Cycle Life 6000 Life Cycle at 80% DOD
Months Self ≤3.5% per month at 25℃
Battery Cell 3.2V 100AH, Prismatic, LiFePo4
 Cell compose method  16S1P
                                                          Charge & Discharge
Charge Voltage DC 54.8V
Discharge Cut-off Voltage 40 A
Standard Charge Current 20 A
Standard Discharge Current 50 A
Max. Continuous  Charge Current 100 A
Max. Continuous  Discharge Current 100 A
                                                               Temperature
Charge Temperature 0 ~ 45°C（32 ~ 113°F)
Discharge Temperature -20 ~ 55°C（-4 ~ 131°F）
Storage temperature -10 ~ 45°C（14 ~ 113°F）
Initial Impedance <20mΩ
                                                           General Data
Approx. Weight Approx. 53KG

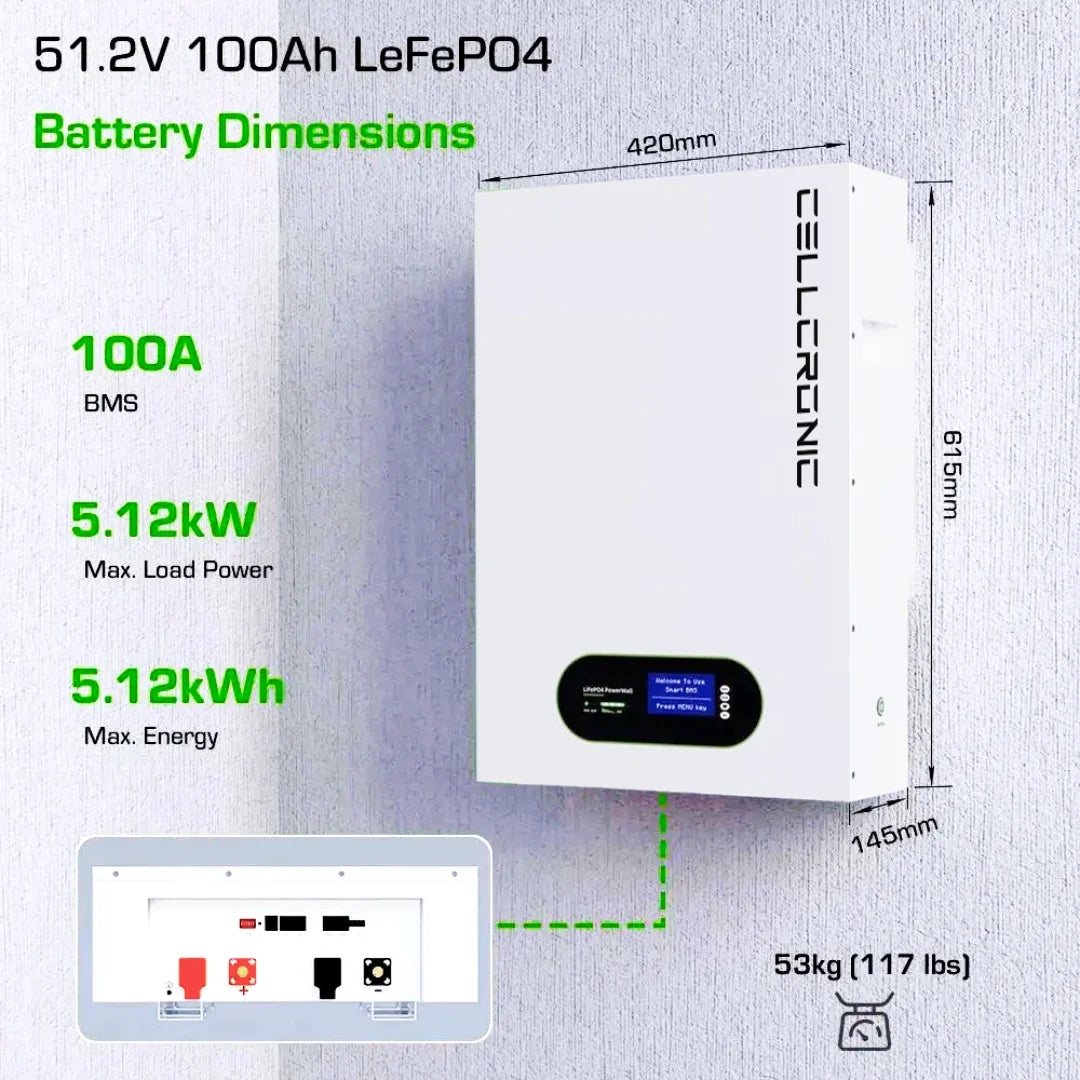

Dimension (H*W*D) H615*W420*D145(mm)
Module Parallel Support up to 16pcs parallel

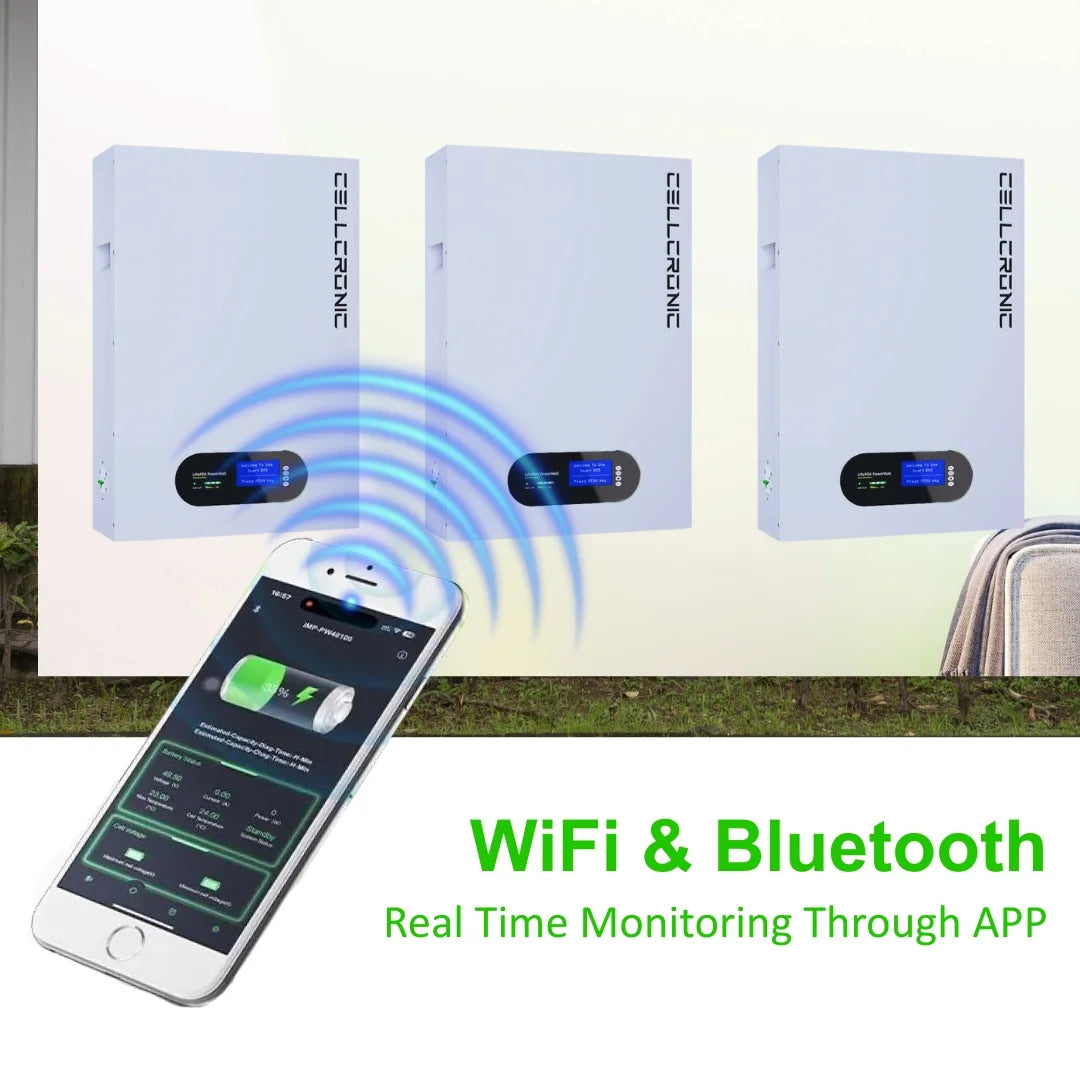

Communication Mode RS232 / RS485 / CAN
Housing Metal
Screen Colorful LCD Screen
Cooling Method Natural Cooling
Support Inverter brands Deye, Senergy, Sorotec, Voltronic”. (any brand inverter if you need to support)
IP Rating IP54
Protection Over voltage protection (Cell & System), Low voltage protection (Cell & System), High temperature protection, Low temperature protection, Short circuit protection, Over current protection
Warranty 5 Years
