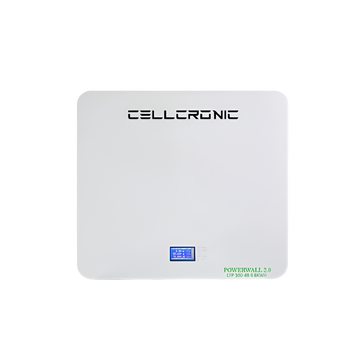

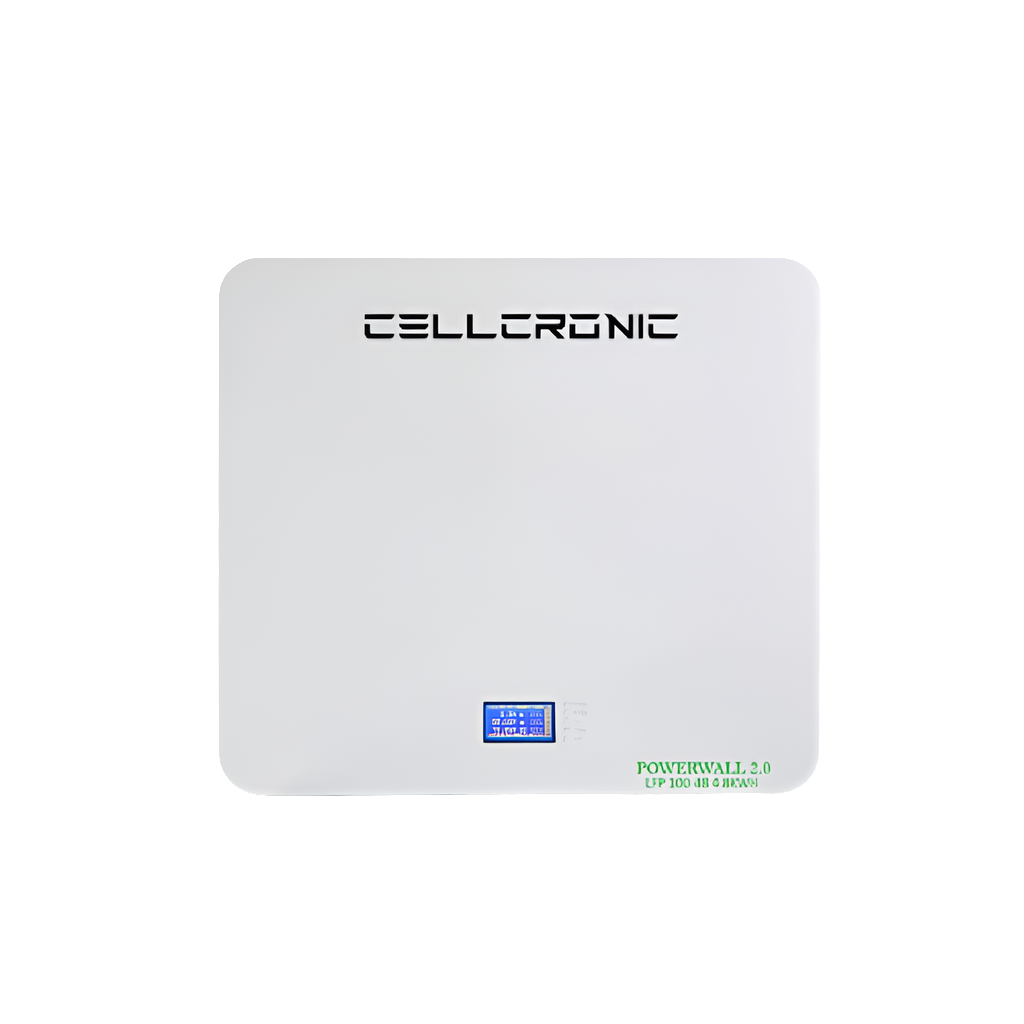

Cellcronic Powerwall 2.0 Plus 4.8Kwh-48V-100AH LiFePo4

Regular price Rs. 144,066.95
Sale price Rs. 144,066.95 Regular price
Unit price
Compare Ask a question

Ask a Question

* Required fields

 Size guide Share
Cellcronic Powerwall 2.0 Plus 4.8Kwh-48V-100AH LiFePo4

Cellcronic Powerwall 2.0 Plus 4.8Kwh-48V-100AH LiFePo4

Regular price Rs. 144,066.95
Sale price Rs. 144,066.95 Regular price
Unit price
Product description

Key Specifications & Features

  1. Lightweight: 48 KG
  2. Compact: H480W450D222(mm)
  3. Parallel Support: Up to 32pcs
  4. 100AH Battery Capacity
  5. Warranty: 10 Years
  6. No maintenance, Long Service Life,
  7. Environment Friendly Battery.
  8.  Service Span Upto 60 years.
  9. 6000+ Life cycle at 80% DOD
  10. Good choice for daily power supply





Item General Parameter Remark
Combination Method 15S
Rated Capcity Typical-100Ah, Minimum-100Ah Standard Discharge After Standard Charge(Package)
Factory Voltage 21-29V Mean Operation Voltage
  Voltage at end of Discharge 20-21V Discharge Cut-Off Voltage
Charging Voltage 28-29V
Internal Impedance ≤50mΩ Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
Standard charge Constant Current 30A Constant Voltage see No.5 0.01CA cut-off Charge time : Approx 6h
Standard discharge Constant current：30A end voltage see NO.4
Maximum Continuous Charge Current 100A
Maximum Continuous Discharge Current 100A
Operation Temperature Range Charge: 0~45°C, Discharge: -20~55°C 60±25%R.H. Bare Cell
Storage Temperature Range Less than 12 months : -10~35℃, less than 3 months: -10~45℃, Less than 7 day : -20~65℃ 60±25%R.H. at the shipment state
Cycle life ≥6000cycle at 80% DOD
Dimensions 480*450*222 mm Include case
Weight 48kg Include case
Volumetric specific energy 100 WH/L Include case
Gravimetric specific energy 99WH/KG Include case








Advance LCD screen for all parameters.


6000 cycle life at 80% DOD.


Super graphene lithium cells.


Smart 125A BMS, Super safety design.


AN, RS485, and RS232 communication ports.


Parallel up to 32 units.


60 year design life.


High discharge current up to 100A continuous and 350A for the surge.


10-year warranty.
